PXF - Mechanical data |
|
| Type of installation | Universal mounting |
| Housing material | Steel sheet |
PXF - Optical data |
|
| Reflector | None |
PXF - Electrical data |
|
| Light source | LED |
| Number of light sources | 1 |
| Type of equipment | AC |
| Voltage rating | 230 V |
| Light source included | Yes |
| Type of LED | LG6030 |
| SELV | Yes |
| Light source power | 44W |
| Luminarie power | 44 W |
PXF - Infromations |
|
| Color | White |
PXF - Light data |
|
| Light color | White |
| Color rendering index | 80 |
| Class of luminarie | I |
| Light distribution | DI |
PXF - Certificates |
|
| Degree of protection (IP) | IP20 |
| Class of protection | I |
| Energy class | A+ |
| CE | Yes |
| Light source protection | Yes |

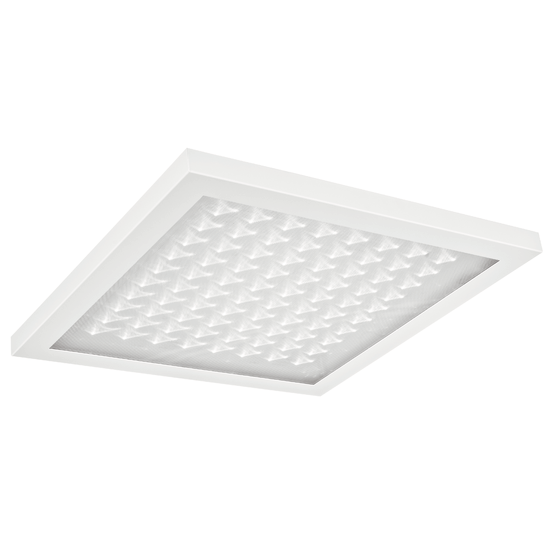

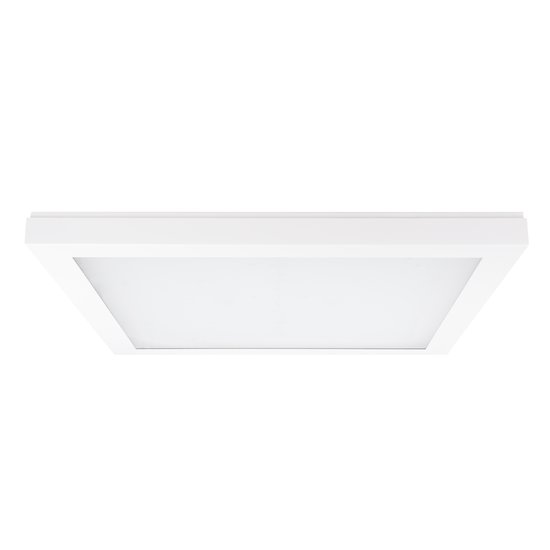

Universal luminaire designed specifically for LED light sources. Simple installation, LED chips of reputable manufacturers and power factor cos ϕ = 0,97 makes the UNI LED a high quality product with a wide range of possible applications. UNI LED was designed especially for offices, conference rooms and pedestrian walkways and is available in versions with motion sensor and emergency module.
Materials: powder painted housing made of galvanized steel sheets (standard color: white), frame on magnets with protetion against falling, opal, prismatic PRM or microprismatic MPRM diffuser
Installation: suspended, for 600x600 ceiling, ceiling mounted

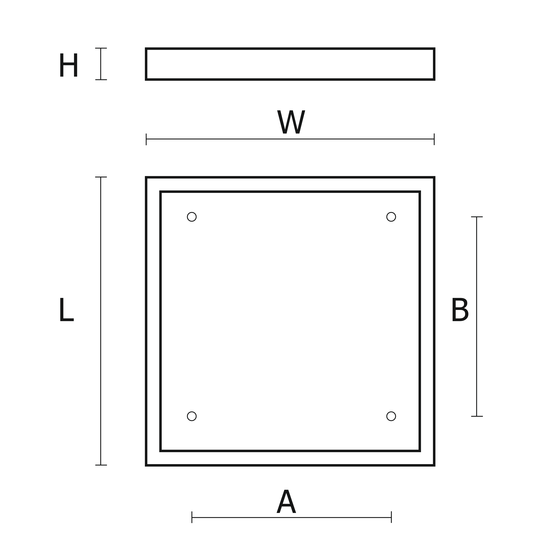

| L | W | H |
|---|---|---|
| 595 | 595 | 45 |
L - Length
W - Width
H - Height / Depth
Used marks:
SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum
OPAL - opal lampshade
PRM - prismatic lampshade
MPRM - microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass
DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution
NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling
EVG - electronic ballast
VVG - magnetic ballast
NM - non maintained
M - maintained
