PXF - Mechanical data |
|
| Type of installation | Wall mounted |
| Housing material | Aluminum |
PXF - Optical data |
|
| Diffuser color | White |
| Louver/shutter | OPAL |
| Diffuser material | Prismatic plastic |
PXF - Electrical data |
|
| Light source | LED |
| Number of light sources | 1 |
| Type of equipment | AC |
| Voltage rating | 230 V |
| Light source included | Yes |
| Type of LED | LG6030 |
| SELV | Yes |
| Light source power | 19W |
| Luminarie power | 19 W |
PXF - Infromations |
|
| Color | Grey |
PXF - Light data |
|
| Light color | White |
| Color rendering index | 80 |
| Class of luminarie | I |
| Light distribution | DI |
PXF - Certificates |
|
| Degree of protection (IP) | IP44 |
| Class of protection | I |
| Energy class | A+ |
| CE | Yes |
| Light source protection | Yes |
| PZH | Yes |

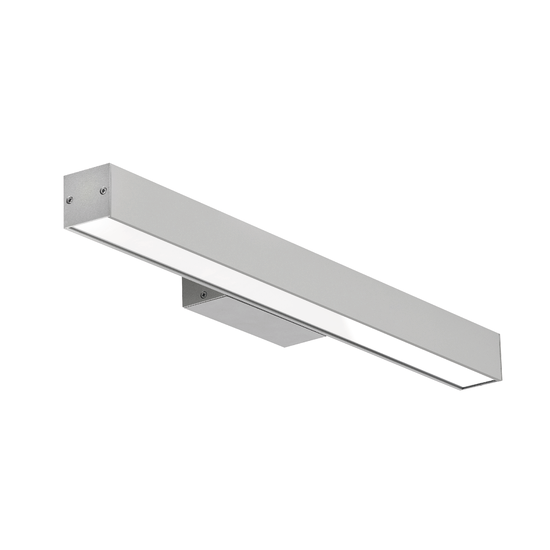

VIP Bracket IP44 is a subtle and minimalistic extension of VIP system made of aluminum profile and direct light distribution. Version with LED light sources. VIP Bracket IP44 was designed as an accenting wall luminaire for use in bathrooms, corridors and conference rooms.
Materials: powder painted aluminum proflie (standard color: grey), polycarbonate opal diffuser
Installation: wall mounted
Power: 230 V

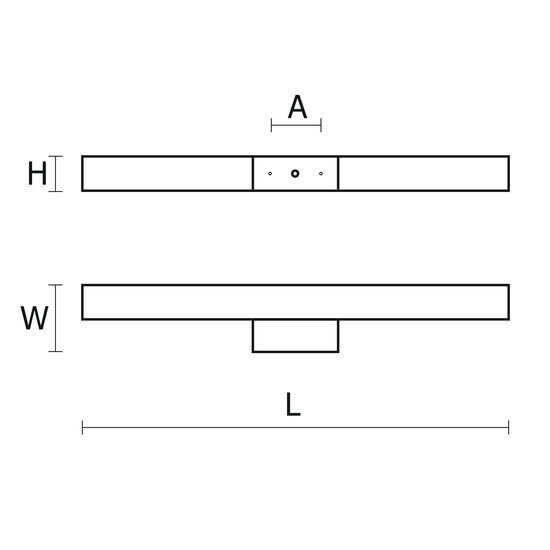

| L | W | H |
|---|---|---|
| 595 | 92 | 46 |
L - Length
W - Width
H - Height / Depth
Used marks:
SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum
OPAL - opal lampshade
PRM - prismatic lampshade
MPRM - microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass
DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution
NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling
EVG - electronic ballast
VVG - magnetic ballast
NM - non maintained
M - maintained
