PXF - Mechanical data |
|
| Type of installation | Wall mounted |
| Housing material | Aluminum |
PXF - Optical data |
|
| Diffuser color | White |
| Louver/shutter | OPAL |
| Diffuser material | Opal platic |
PXF - Electrical data |
|
| Light source | LED |
| Number of light sources | 1 |
| Type of equipment | AC |
| Voltage rating | 230 V |
| Light source included | Yes |
| Type of LED | LG6030 |
| SELV | Yes |
PXF - Infromations |
|
| Color | Grey |
PXF - Light data |
|
| Light color | White |
| Color rendering index | 80 |
| Class of luminarie | III |
| Light distribution | DI |
PXF - Certificates |
|
| Degree of protection (IP) | IP20 |
| Class of protection | I |
| Energy class | A+ |
| CE | Yes |
| Light source protection | Yes |
| PZH | Yes |
VIP Mini Bracket is a miniaturized luminaire designed for wall mounting, complementing VIP series. Made of aluminum profile VIP Mini Bracket is an additional decorative and accenting luminaire perfect for subtle lighting. Version with LED light sources.
Materials: powder painted aluminum proflie (standard color: grey), opal diffuser
Installation: wall mounted
Power: 230 V

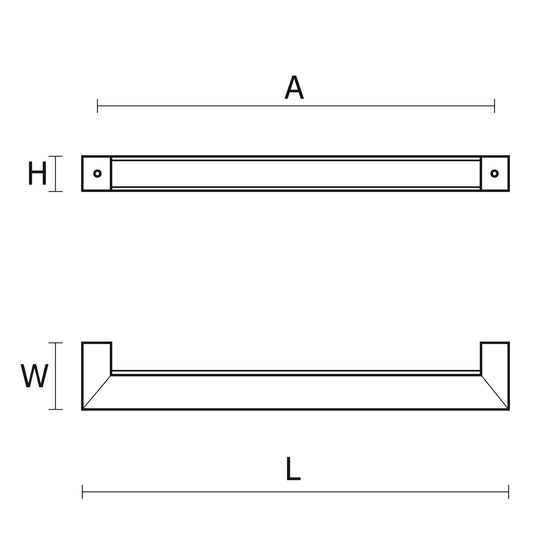

| L | W | H | |
|---|---|---|---|
| PX0960143 12W | 394 | 92 | 46 |
| PX0960150 12W | 394 | 92 | 46 |
| PX0960157 19W | 684 | 92 | 46 |
| PX0960164 19W | 684 | 92 | 46 |
L - Length
W - Width
H - Height / Depth
Used marks:
SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum
OPAL - opal lampshade
PRM - prismatic lampshade
MPRM - microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass
DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution
NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling
EVG - electronic ballast
VVG - magnetic ballast
NM - non maintained
M - maintained
