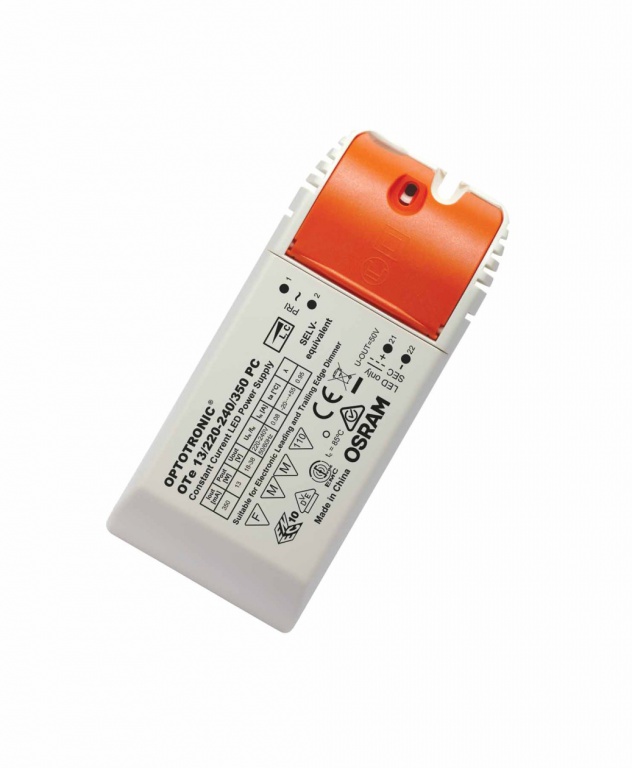

350 PC LED Power Supplies

Electrico24 code: 56429 | Osram code: 4052899105324

Price € 18,37 incl. VAT
€ 18,37 netto

Length 95.0 mm
Nominal output power 13 W
Input voltage AC 198264 V
Nominal output voltage 1838 V
Device power loss 3.0 W
ECG efficiency 82 %
Inrush current 5 A
Max. no. of ECGs on circuit breaker 10 A 80
Max. no. of ECGs on circuit breaker 16 A 130
Surge capability (L/N-Ground) 1 kV
Width 53.0 mm
Height 25.0 mm
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 6

OTe 10/220...240/700 PC

Karta produktu PDF

Electrico24 code: 57102 | Osram code: 4052899105300 Nominal voltage: 220240 V Power factor λ: 0.95/0.90 Length: 95.0 mm Dimmable: Yes Nominal output power: 10 W Input voltage AC: 198264 V Mains frequency: 5060 Hz Nominal output voltage: 714 V Device power loss: 2.8 W ECG efficiency: 79 % see more »

Inrush current: 5 A Max. no. of ECGs on circuit breaker 10 A: 110 Galvanic isolation primary/secondary: 3.75 kV Max. no. of ECGs on circuit breaker 16 A: 160 Surge capability (L-N): 1 kV Surge capability (L/N-Ground): 1 kV Width: 53.0 mm Height: 25.0 mm Cable cross-section, input side: 0.751.5 mm² Product weight: 100.00 g Cable cross-section, output side: 0.51.5 mm² Casing material: Plastic Wire preparation length, input side: 8.09.0 mm Ambient temperature range: -20+55 °C Maximum temperature at tc test point: 80 °C Temperature range at storage: -2575 °C ECG lifetime: 50000 h Max.housing temperature in case of fault: 110 °C Suitable for fixtures with prot. class: I / II Overheating protection: Automatic reversible Max. cable length to lamp/LED module: 2.0 m No-load proof: Yes Overload protection: Automatic reversible Short-circuit protection: Automatic reversible Approval marks approval: CE / ENEC 10 / VDE / CB Standards: Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547 Type of protection: IP20 Nominal output current: 700 mA Dimming interface: Phase Cut Dimming range: 10100 % « hide more

€ 17,48 € 17,48 ex. VAT

OTe 13/220...240/350 PC (currently dislayed)

Karta produktu PDF

Electrico24 code: 56429 | Osram code: 4052899105324 Length: 95.0 mm Nominal output power: 13 W Input voltage AC: 198264 V Nominal output voltage: 1838 V Device power loss: 3.0 W ECG efficiency: 82 % Inrush current: 5 A Max. no. of ECGs on circuit breaker 10 A: 80 Max. no. of ECGs on circuit breaker 16 A: 130 Surge capability (L/N-Ground): 1 kV see more »

Width: 53.0 mm Height: 25.0 mm Cable cross-section, input side: 0.751.5 mm² Product weight: 100.00 g Cable cross-section, output side: 0.51.5 mm² Wire preparation length, input side: 8.09.0 mm Ambient temperature range: -20+55 °C Maximum temperature at tc test point: 85 °C Temperature range at storage: -2575 °C Suitable for fixtures with prot. class: I / II Approval marks approval: CE / ENEC 10 / VDE / CB Standards: Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547 Nominal output current: 350 mA « hide more

€ 18,37 € 18,37 ex. VAT

OTe 18/220...240/350 PC

Karta produktu PDF

Electrico24 code: 56430 | Osram code: 4052899105348 Length: 95.0 mm Nominal output power: 19 W Input voltage AC: 198264 V Nominal output voltage: 2754 V Device power loss: 4.0 W ECG efficiency: 84 % Inrush current: 5 A Max. no. of ECGs on circuit breaker 10 A: 52 Max. no. of ECGs on circuit breaker 16 A: 84 Surge capability (L/N-Ground): 1 kV see more »

Width: 53.0 mm Height: 30.0 mm Cable cross-section, input side: 0.751.5 mm² Product weight: 110.00 g Cable cross-section, output side: 0.51.5 mm² Wire preparation length, input side: 8.09.0 mm Ambient temperature range: -20+55 °C Maximum temperature at tc test point: 80 °C Temperature range at storage: -2575 °C Suitable for fixtures with prot. class: I / II Approval marks approval: CE / ENEC 10 / VDE / CB Standards: Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547 Nominal output current: 350 mA « hide more

€ 20,16 € 20,16 ex. VAT

OTe 18/220...240/500 PC

Karta produktu PDF

Electrico24 code: 56431 | Osram code: 4052899105362 Length: 95.0 mm Nominal output power: 18 W Input voltage AC: 198264 V Nominal output voltage: 1836 V Device power loss: 3.5 W ECG efficiency: 84 % Inrush current: 5 A Max. no. of ECGs on circuit breaker 10 A: 52 Max. no. of ECGs on circuit breaker 16 A: 84 Surge capability (L/N-Ground): 1 kV see more »

Width: 53.0 mm Height: 30.0 mm Cable cross-section, input side: 0.751.5 mm² Product weight: 110.00 g Cable cross-section, output side: 0.51.5 mm² Wire preparation length, input side: 8.09.0 mm Ambient temperature range: -20+55 °C Maximum temperature at tc test point: 80 °C Temperature range at storage: -2575 °C Suitable for fixtures with prot. class: I / II Approval marks approval: CE / ENEC 10 / VDE / CB Standards: Acc. to IEC 61347/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547 Nominal output current: 500 mA « hide more

€ 20,16 € 20,16 ex. VAT

OTe 25/220...240/700 PC

Karta produktu PDF

Electrico24 code: 56432 | Osram code: 4052899105386 Length: 95.0 mm Nominal output power: 25 W Input voltage AC: 198264 V Nominal output voltage: 1836 V Device power loss: 4.4 W ECG efficiency: 85 % Inrush current: 7 A Max. no. of ECGs on circuit breaker 10 A: 40 Max. no. of ECGs on circuit breaker 16 A: 65 Surge capability (L/N-Ground): 1 kV see more »

Width: 53.0 mm Height: 30.0 mm Cable cross-section, input side: 0.751.5 mm² Product weight: 110.00 g Cable cross-section, output side: 0.51.5 mm² Casing material: Plastic Wire preparation length, input side: 8.09.0 mm Ambient temperature range: -20+50 °C Maximum temperature at tc test point: 80 °C Temperature range at storage: -2575 °C Suitable for fixtures with prot. class: I / II Approval marks approval: CE / ENEC 10 / VDE / CB Standards: Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61347 Nominal output current: 700 mA « hide more

€ 22,23 € 22,23 ex. VAT

OTe 35/220...240/700 PC

Karta produktu PDF

Electrico24 code: 56434 | Osram code: 4008321825520 Length: 153.0 mm Nominal output power: 35 W Input voltage AC: 195264 V Nominal output voltage: 2750 V Device power loss: 7.0 W ECG efficiency: 85 % Inrush current: < 10 A Max. no. of ECGs on circuit breaker 10 A: 30 Max. no. of ECGs on circuit breaker 16 A: 50 Width: 54.0 mm see more »

Height: 36.0 mm Cable cross-section, input side: 0.752.5 mm² Product weight: 165.00 g Cable cross-section, output side: 0.52.5 mm² Casing material: Plastic Wire preparation length, input side: 5.0 mm Ambient temperature range: -20+45 °C Maximum temperature at tc test point: 75 °C Temperature range at storage: -4085 °C Suitable for fixtures with prot. class: II Approval marks approval: CE / ENEC 10 / VDE / CB / C-Tick Standards: Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547 Nominal output current: 700 mA « hide more

€ 35,60 € 35,60 ex. VAT

Description / FAQ Warranty

Length	95.0 mm
Nominal output power	13 W
Input voltage AC	198264 V
Nominal output voltage	1838 V
Device power loss	3.0 W
ECG efficiency	82 %
Inrush current	5 A
Max. no. of ECGs on circuit breaker 10 A	80
Max. no. of ECGs on circuit breaker 16 A	130
Surge capability (L/N-Ground)	1 kV
Width	53.0 mm
Height	25.0 mm
Cable cross-section, input side	0.751.5 mm²
Product weight	100.00 g
Cable cross-section, output side	0.51.5 mm²
Wire preparation length, input side	8.09.0 mm
Ambient temperature range	-20+55 °C
Maximum temperature at tc test point	85 °C
Temperature range at storage	-2575 °C
Suitable for fixtures with prot. class	I / II
Approval marks approval	CE / ENEC 10 / VDE / CB
Standards	Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547
Nominal output current	350 mA
Electrical data
Nominal voltage	220240 V
Power factor λ	0.95/0.90
Mains frequency	5060 Hz
Galvanic isolation primary/secondary	3.75 kV
Surge capability (L-N)	1 kV
Lifespan
ECG lifetime	50000 h
Capabilities
Dimmable	Yes
Overheating protection	Automatic reversible
Max. cable length to lamp/LED module	2.0 m
No-load proof	Yes
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
Dimming interface	Phase Cut
Dimming range	10100 %
Certificates & standards
Type of protection	IP20
Temperatures
Max.housing temperature in case of fault	110 °C

Product benefits

Compact housing for mounting in very tight spaces
Compatible with the most common leading-edge and trailing-edge phase dimmers

Areas of application

Optional cable clamp E-style for independent mounting (to be ordered separately)
Suitable for indoor installations

Product features

Dimmable via leading edge/trailing edge
