OTe 10/220...240/700 PC LED Power Supplies

Electrico24 code: 57102 | Osram code: 4052899105300
Osram OTe 10/220...240/700 PC
Price € 17,48 incl. VAT
€ 17,48 netto
pc(s)
pc(s)
  • Nominal voltage 220…240 V
  • Power factor λ 0.95/0.90
  • Length 95.0 mm
  • Dimmable Yes
  • Nominal output power 10 W
  • Input voltage AC 198…264 V
  • Mains frequency 50…60 Hz
  • Nominal output voltage 7…14 V
  • Device power loss 2.8 W
  • ECG efficiency 79 %
  • Inrush current 5 A
  • Max. no. of ECGs on circuit breaker 10 A 110
  • ▼ see full specification ▼

Select your product from the 6

 OTe 10/220...240/700 PC
OTe 10/220...240/700 PC (currently dislayed)
Electrico24 code: 57102 | Osram code: 4052899105300 Nominal voltage: 220…240 V Power factor λ: 0.95/0.90  Length: 95.0 mm Dimmable: Yes Nominal output power: 10 W  Input voltage AC: 198…264 V  Mains frequency: 50…60 Hz Nominal output voltage: 7…14 V Device power loss: 2.8 W  ECG efficiency: 79 %  see more »
Inrush current: 5 A  Max. no. of ECGs on circuit breaker 10 A: 110 Galvanic isolation primary/secondary: 3.75 kV  Max. no. of ECGs on circuit breaker 16 A: 160 Surge capability (L-N): 1 kV Surge capability (L/N-Ground): 1 kV Width: 53.0 mm Height: 25.0 mm Cable cross-section, input side: 0.75…1.5 mm²  Product weight: 100.00 g Cable cross-section, output side: 0.5…1.5 mm²  Casing material: Plastic Wire preparation length, input side: 8.0…9.0 mm Ambient temperature range: -20…+55 °C Maximum temperature at tc test point: 80 °C  Temperature range at storage: -25…75 °C ECG lifetime: 50000 h  Max.housing temperature in case of fault: 110 °C Suitable for fixtures with prot. class: I / II Overheating protection: Automatic reversible Max. cable length to lamp/LED module: 2.0 m No-load proof: Yes Overload protection: Automatic reversible Short-circuit protection: Automatic reversible Approval marks – approval: CE / ENEC 10 / VDE / CB Standards: Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547 Type of protection: IP20 Nominal output current: 700 mA  Dimming interface: Phase Cut  Dimming range: 10…100 % « hide more
€ 17,48 € 17,48 ex. VAT
pc(s)
pc(s)

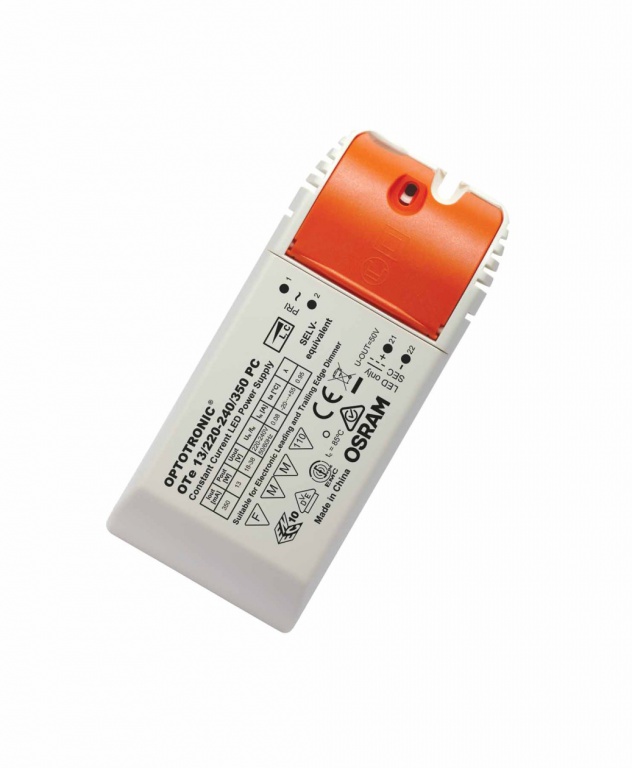

 OTe 13/220...240/350 PC
Electrico24 code: 56429 | Osram code: 4052899105324 Length: 95.0 mm Nominal output power: 13 W  Input voltage AC: 198…264 V  Nominal output voltage: 18…38 V  Device power loss: 3.0 W  ECG efficiency: 82 %  Inrush current: 5 A  Max. no. of ECGs on circuit breaker 10 A: 80 Max. no. of ECGs on circuit breaker 16 A: 130 Surge capability (L/N-Ground): 1 kV see more »
Width: 53.0 mm Height: 25.0 mm Cable cross-section, input side: 0.75…1.5 mm²  Product weight: 100.00 g Cable cross-section, output side: 0.5…1.5 mm²  Wire preparation length, input side: 8.0…9.0 mm Ambient temperature range: -20…+55 °C Maximum temperature at tc test point: 85 °C  Temperature range at storage: -25…75 °C Suitable for fixtures with prot. class: I / II Approval marks – approval: CE / ENEC 10 / VDE / CB Standards: Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547 Nominal output current: 350 mA  « hide more
€ 18,37 € 18,37 ex. VAT
pc(s)
pc(s)
 OTe 18/220...240/350 PC
Electrico24 code: 56430 | Osram code: 4052899105348 Length: 95.0 mm Nominal output power: 19 W  Input voltage AC: 198…264 V  Nominal output voltage: 27…54 V  Device power loss: 4.0 W  ECG efficiency: 84 %  Inrush current: 5 A  Max. no. of ECGs on circuit breaker 10 A: 52 Max. no. of ECGs on circuit breaker 16 A: 84 Surge capability (L/N-Ground): 1 kV see more »
Width: 53.0 mm Height: 30.0 mm Cable cross-section, input side: 0.75…1.5 mm²  Product weight: 110.00 g Cable cross-section, output side: 0.5…1.5 mm²  Wire preparation length, input side: 8.0…9.0 mm Ambient temperature range: -20…+55 °C Maximum temperature at tc test point: 80 °C  Temperature range at storage: -25…75 °C Suitable for fixtures with prot. class: I / II Approval marks – approval: CE / ENEC 10 / VDE / CB Standards: Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547 Nominal output current: 350 mA  « hide more
€ 20,16 € 20,16 ex. VAT
pc(s)
pc(s)
 OTe 18/220...240/500 PC
Electrico24 code: 56431 | Osram code: 4052899105362 Length: 95.0 mm Nominal output power: 18 W  Input voltage AC: 198…264 V  Nominal output voltage: 18…36 V  Device power loss: 3.5 W  ECG efficiency: 84 %  Inrush current: 5 A  Max. no. of ECGs on circuit breaker 10 A: 52 Max. no. of ECGs on circuit breaker 16 A: 84 Surge capability (L/N-Ground): 1 kV see more »
Width: 53.0 mm Height: 30.0 mm Cable cross-section, input side: 0.75…1.5 mm²  Product weight: 110.00 g Cable cross-section, output side: 0.5…1.5 mm²  Wire preparation length, input side: 8.0…9.0 mm Ambient temperature range: -20…+55 °C Maximum temperature at tc test point: 80 °C  Temperature range at storage: -25…75 °C Suitable for fixtures with prot. class: I / II Approval marks – approval: CE / ENEC 10 / VDE / CB Standards: Acc. to IEC 61347/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547 Nominal output current: 500 mA  « hide more
€ 20,16 € 20,16 ex. VAT
pc(s)
pc(s)
 OTe 25/220...240/700 PC
Electrico24 code: 56432 | Osram code: 4052899105386 Length: 95.0 mm Nominal output power: 25 W  Input voltage AC: 198…264 V  Nominal output voltage: 18…36 V  Device power loss: 4.4 W  ECG efficiency: 85 %  Inrush current: 7 A  Max. no. of ECGs on circuit breaker 10 A: 40 Max. no. of ECGs on circuit breaker 16 A: 65 Surge capability (L/N-Ground): 1 kV see more »
Width: 53.0 mm Height: 30.0 mm Cable cross-section, input side: 0.75…1.5 mm²  Product weight: 110.00 g Cable cross-section, output side: 0.5…1.5 mm²  Casing material: Plastic Wire preparation length, input side: 8.0…9.0 mm Ambient temperature range: -20…+50 °C Maximum temperature at tc test point: 80 °C  Temperature range at storage: -25…75 °C Suitable for fixtures with prot. class: I / II Approval marks – approval: CE / ENEC 10 / VDE / CB Standards: Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61347 Nominal output current: 700 mA  « hide more
€ 22,23 € 22,23 ex. VAT
pc(s)
pc(s)
 OTe 35/220...240/700 PC
Electrico24 code: 56434 | Osram code: 4008321825520 Length: 153.0 mm Nominal output power: 35 W  Input voltage AC: 195…264 V  Nominal output voltage: 27…50 V  Device power loss: 7.0 W  ECG efficiency: 85 %  Inrush current: < 10 A  Max. no. of ECGs on circuit breaker 10 A: 30 Max. no. of ECGs on circuit breaker 16 A: 50 Width: 54.0 mm see more »
Height: 36.0 mm Cable cross-section, input side: 0.75…2.5 mm²  Product weight: 165.00 g Cable cross-section, output side: 0.5…2.5 mm²  Casing material: Plastic Wire preparation length, input side: 5.0 mm Ambient temperature range: -20…+45 °C Maximum temperature at tc test point: 75 °C  Temperature range at storage: -40…85 °C Suitable for fixtures with prot. class: II Approval marks – approval: CE / ENEC 10 / VDE / CB / C-Tick Standards: Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547 Nominal output current: 700 mA  « hide more
€ 35,60 € 35,60 ex. VAT
pc(s)
pc(s)
Nominal voltage 220…240 V
Power factor λ 0.95/0.90
Length 95.0 mm
Dimmable Yes
Nominal output power 10 W
Input voltage AC 198…264 V
Mains frequency 50…60 Hz
Nominal output voltage 7…14 V
Device power loss 2.8 W
ECG efficiency 79 %
Inrush current 5 A
Max. no. of ECGs on circuit breaker 10 A 110
Galvanic isolation primary/secondary 3.75 kV
Max. no. of ECGs on circuit breaker 16 A 160
Surge capability (L-N) 1 kV
Surge capability (L/N-Ground) 1 kV
Width 53.0 mm
Height 25.0 mm
Cable cross-section, input side 0.75…1.5 mm²
Product weight 100.00 g
Cable cross-section, output side 0.5…1.5 mm²
Casing material Plastic
Wire preparation length, input side 8.0…9.0 mm
Ambient temperature range -20…+55 °C
Maximum temperature at tc test point 80 °C
Temperature range at storage -25…75 °C
ECG lifetime 50000 h
Max.housing temperature in case of fault 110 °C
Suitable for fixtures with prot. class I / II
Overheating protection Automatic reversible
Max. cable length to lamp/LED module 2.0 m
No-load proof Yes
Overload protection Automatic reversible
Short-circuit protection Automatic reversible
Approval marks – approval CE / ENEC 10 / VDE / CB
Standards Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547
Type of protection IP20
Nominal output current 700 mA
Dimming interface Phase Cut
Dimming range 10…100 %

Electrical data

Nominal voltage 220…240 V
Power factor λ 0.95/0.90
Mains frequency 50…60 Hz
Galvanic isolation primary/secondary 3.75 kV
Surge capability (L-N) 1 kV

Lifespan

ECG lifetime 50000 h

Capabilities

Dimmable Yes
Overheating protection Automatic reversible
Max. cable length to lamp/LED module 2.0 m
No-load proof Yes
Overload protection Automatic reversible
Short-circuit protection Automatic reversible
Dimming interface Phase Cut
Dimming range 10…100 %

Certificates & standards

Type of protection IP20

Temperatures

Max.housing temperature in case of fault 110 °C

Product benefits

  • Compact housing for mounting in very tight spaces
  • Compatible with the most common leading-edge and trailing-edge phase dimmers

Areas of application

  • Optional cable clamp E-style for independent mounting (to be ordered separately)
  • Suitable for indoor installations

Product features

  • Dimmable via leading edge/trailing edge
