CV Power supplies 12V LED Power Supplies LED Power Supplies for Strips

From € 54,43 incl. VAT
From € 54,43 ex. VAT

See variants (3)

Mains frequency 5060 Hz
Nominal output voltage 12.5 V
Galvanic isolation primary/secondary 3.75 kV
Wire preparation length, input side 10 mm
ECG lifetime 50000 h
Overheating protection Automatic reversible
Max. cable length to lamp/LED module 10 m
No-load proof Yes
Overload protection Automatic reversible
Short-circuit protection Automatic reversible
Ambient temperature range -25+55 °C
Maximum temperature at tc test point 80 °C
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 3

OT 30/220...240/12 P

Karta produktu PDF

Electrico24 code: 56414 | Osram code: 4052899905542 Nominal voltage: 220240 V Power factor λ: 0.95/0.90 Length: 220.0 mm Dimmable: Yes Nominal output power: 30 W Input voltage AC: 198264 V Device power loss: 5.0 W ECG efficiency: 85 % Nominal current: 0.19 A Inrush current: 30 A see more »

Max. no. of ECGs on circuit breaker 10 A: 13 Max. no. of ECGs on circuit breaker 16 A: 21 Surge capability (L-N): 4 kV Width: 40.0 mm Height: 22.0 mm Mounting hole spacing, length: 213.0 mm Cable cross-section, input side: 1.0 mm² Product weight: 330.00 g Cable cross-section, output side: 1.0 mm² Casing material: Plastic Max.housing temperature in case of fault: 110 °C Suitable for fixtures with prot. class: II Approval marks approval: CE / ENEC 18 / CB / C-Tick Standards: acc. to IEC 61347-1/acc. to IEC 61347-2-13/acc. to IEC 62384/acc. to CISPR 15/acc. to IEC 61000-3-2/acc. to IEC 61547 Type of protection: IP66 « hide more

€ 54,43 € 54,43 ex. VAT

OT 60/220...240/12 P

Karta produktu PDF

Electrico24 code: 56420 | Osram code: 4008321790811 Nominal voltage: 220240 V Power factor λ: 0.98/0.93 Length: 180.0 mm Dimmable: Yes Nominal output power: 60 W Input voltage AC: 198264 V Device power loss: 9.0 W ECG efficiency: 86 % Nominal current: 0.33 A Inrush current: 35 A see more »

Max. no. of ECGs on circuit breaker 10 A: 11 Max. no. of ECGs on circuit breaker 16 A: 17 Surge capability (L-N): 3 kV Width: 50.0 mm Height: 34.0 mm Mounting hole spacing, length: 171.0 mm Mounting hole spacing, width: 14.0 mm Cable cross-section, input side: 1.0 mm² Product weight: 700.00 g Cable cross-section, output side: 1.0 mm² Casing material: Metal Max.housing temperature in case of fault: 100 °C Suitable for fixtures with prot. class: II Approval marks approval: CE / ENEC 18 / CB / C-Tick Standards: acc. to IEC 61347-1/acc. to IEC 61347-2-13/acc. to IEC 62384/acc. to CISPR 15/acc. to IEC 61000-3-2/acc. to IEC 61000-3-3/acc. to IEC 61547 Type of protection: IP67 « hide more

€ 68,83 € 68,83 ex. VAT

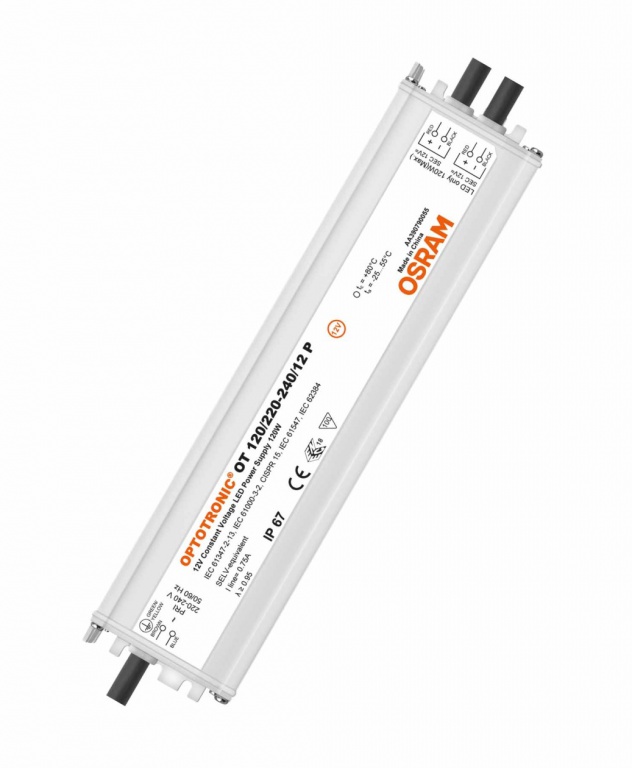

OT 120/220...240/12 P

Karta produktu PDF

Electrico24 code: 55430 | Osram code: 4008321790835 Nominal voltage: 220240 V Power factor λ: 0.98/0.95 Length: 250.0 mm Dimmable: Yes Nominal output power: 120 W Input voltage AC: 198264 V Device power loss: 18 W ECG efficiency: 88 % Nominal current: 0.70 A Inrush current: 40 A see more »

Max. no. of ECGs on circuit breaker 10 A: 6 Max. no. of ECGs on circuit breaker 16 A: 10 Surge capability (L-N): 3 kV Surge capability (L/N-Ground): 6 kV Width: 60.0 mm Height: 39.0 mm Mounting hole spacing, length: 241.0 mm Mounting hole spacing, width: 15.0 mm Cable cross-section, input side: 1.0 mm² Product weight: 1150.00 g Cable cross-section, output side: 1.0 mm² Casing material: Metal Max.housing temperature in case of fault: 100 °C Suitable for fixtures with prot. class: I Approval marks approval: CE / ENEC 18 / CB / C-Tick Standards: Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547 Type of protection: IP67 « hide more

€ 90,71 € 90,71 ex. VAT

Description / FAQ Warranty

Electrical data
Mains frequency	5060 Hz
Nominal output voltage	12.5 V
Galvanic isolation primary/secondary	3.75 kV

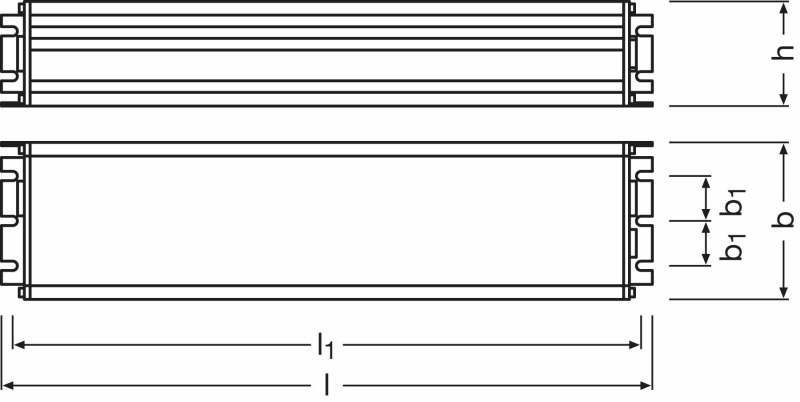

Dimensions & weight
Wire preparation length, input side	10 mm
Lifespan
ECG lifetime	50000 h
Capabilities
Overheating protection	Automatic reversible
Max. cable length to lamp/LED module	10 m
No-load proof	Yes
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
Temperatures
Ambient temperature range	-25+55 °C
Maximum temperature at tc test point	80 °C
Temperature range at storage	-4085 °C

Product benefits

Versatile scope of application due to output power range of up to 120 W
Very high efficiency and reliability
High IP protection (up to IP67)
High surge protection: up to 3 kV (L-N) / 6 kV (L/N-PE)

Areas of application

Suitable for indoor and outdoor installations
Ideal for mounting in very tight spaces
