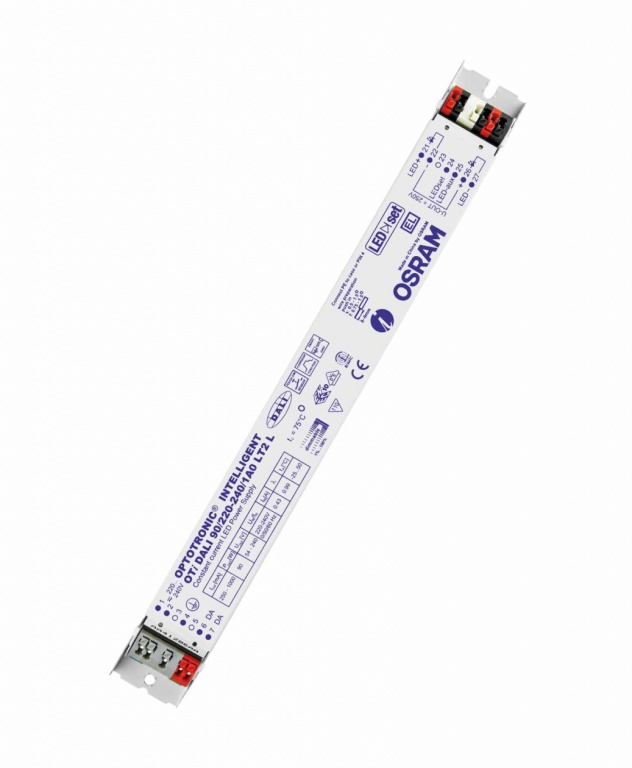

1A6 LT2 L LED Drivers

Electrico24 code: 55453 | Osram code: 4052899028074

Price € 108,83 incl. VAT
€ 108,83 netto

Power factor λ 0.95
Length 360.0 mm
Nominal output power 80 W
Input voltage AC 198264 V
Nominal output voltage 2054 V
Device power loss 8.5 W
ECG efficiency 90 %
Nominal current 0.42 A
Inrush current 53 A
Max. no. of ECGs on circuit breaker 10 A 8
Galvanic isolation primary/secondary 3.75 kV
Max. no. of ECGs on circuit breaker 16 A 13
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 2

OTi DALI 80/220...240/1A6 LT2 L (currently dislayed)

Karta produktu PDF

Electrico24 code: 55453 | Osram code: 4052899028074 Power factor λ: 0.95 Length: 360.0 mm Nominal output power: 80 W Input voltage AC: 198264 V Nominal output voltage: 2054 V Device power loss: 8.5 W ECG efficiency: 90 % Nominal current: 0.42 A Inrush current: 53 A Max. no. of ECGs on circuit breaker 10 A: 8 see more »

Galvanic isolation primary/secondary: 3.75 kV Max. no. of ECGs on circuit breaker 16 A: 13 Cable cross-section, input side: 0.51.5 mm² Product weight: 285.00 g Cable cross-section, output side: 0.51.5 mm² Wire preparation length, input side: 8.59.5 mm Ambient temperature range: -25+50 °C Maximum temperature at tc test point: 80 °C Temperature range at storage: -2575 °C ECG lifetime: 50000 h Max. cable length to lamp/LED module: 2.0 m Standards: Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384 Nominal output current: 6001550 mA Dimming interface: DALI / Touch DIM / Touch DIM Sensor « hide more

€ 108,83 € 108,83 ex. VAT

OTi DALI 80/220...240/2A1 LT2 L

Karta produktu PDF

Electrico24 code: 55454 | Osram code: 4052899028050 Power factor λ: 0.95 Length: 360.0 mm Nominal output power: 80 W Input voltage AC: 198264 V Nominal output voltage: 2054 V Device power loss: 9.0 W ECG efficiency: 90 % Nominal current: 0.42 A Inrush current: 53 A Max. no. of ECGs on circuit breaker 10 A: 8 see more »

Galvanic isolation primary/secondary: 3.75 kV Max. no. of ECGs on circuit breaker 16 A: 13 Cable cross-section, input side: 0.51.5 mm² Product weight: 285.00 g Cable cross-section, output side: 0.51.5 mm² Wire preparation length, input side: 8.59.5 mm Ambient temperature range: -25+45 °C Maximum temperature at tc test point: 80 °C Temperature range at storage: -2575 °C ECG lifetime: 50000 h Max. cable length to lamp/LED module: 2.0 m Standards: Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384 Nominal output current: 10002100 mA Dimming interface: DALI / Touch DIM / Touch DIM Sensor « hide more

€ 115,96 € 115,96 ex. VAT

Description / FAQ Warranty

Power factor λ	0.95
Length	360.0 mm
Nominal output power	80 W
Input voltage AC	198264 V
Nominal output voltage	2054 V
Device power loss	8.5 W
ECG efficiency	90 %
Nominal current	0.42 A
Inrush current	53 A
Max. no. of ECGs on circuit breaker 10 A	8
Galvanic isolation primary/secondary	3.75 kV
Max. no. of ECGs on circuit breaker 16 A	13
Cable cross-section, input side	0.51.5 mm²
Product weight	285.00 g
Cable cross-section, output side	0.51.5 mm²
Wire preparation length, input side	8.59.5 mm
Ambient temperature range	-25+50 °C
Maximum temperature at tc test point	80 °C
Temperature range at storage	-2575 °C
ECG lifetime	50000 h
Max. cable length to lamp/LED module	2.0 m
Standards	Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384
Nominal output current	6001550 mA
Dimming interface	DALI / Touch DIM / Touch DIM Sensor
Electrical data
Nominal voltage	220240 V
Mains frequency	5060 Hz
Surge capability (L-N)	1 kV
Surge capability (L/N-Ground)	2 kV
Power loss in stand-by mode

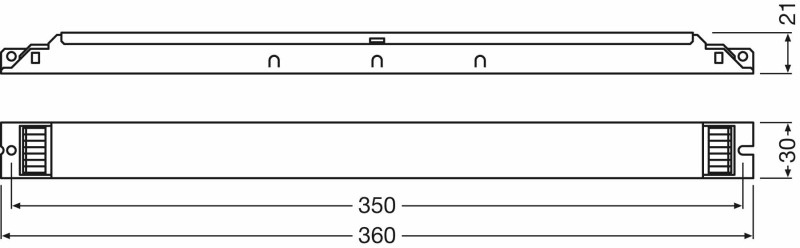

Dimensions & weight
Width	30.0 mm
Height	21.0 mm
Additional product data
Encapsulated	No
Capabilities
Dimmable	Yes
Suitable for fixtures with prot. class	I
Overheating protection	Automatic reversible
No-load proof	Yes
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
Constant lumen function	Programmable
NTC input	No
Dimming range	1100 %
Certificates & standards
Approval marks approval	ENEC 10 / VDE / EMC / EL / CE
Type of protection	IP20
Colors & materials
Casing material	Metal
Temperatures
Max.housing temperature in case of fault	110 °C

Product benefits

Versatile DALI window driver up to 90 W due to flexible output characteristic
Very high efficiency and reliability
Protection of the system thanks to thermal management and Smart Control

Versatile scope of application due to OSRAM DALI Technology:

Easy to use in corridors and restrooms because of three-level Corridor function
Touch DIM application: easy to control via pushbutton or sensor
Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
Feedback of power consumption and operating hours (Fit for SMART GRID)
Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting

Areas of application

Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
Suitable for use in luminaires with flexible current setting (DALI, CLO, LEDset)
Suitable for indoor SELV and non-SELV installations
Suitable for luminaires of protection class I

Product features

Supply voltage: 220…240 V
Line frequency: 0 Hz | 50 Hz | 60 Hz
Line voltage: 198…264 V
Safety according to EN 61347-1, 61347-2-3, 61347-2-13, 62384
RI suppression according to EN 55015:2007+A1:2007/CDN
Line harmonics according to EN 61000-3-2
Immunity according to EN 61547
Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
