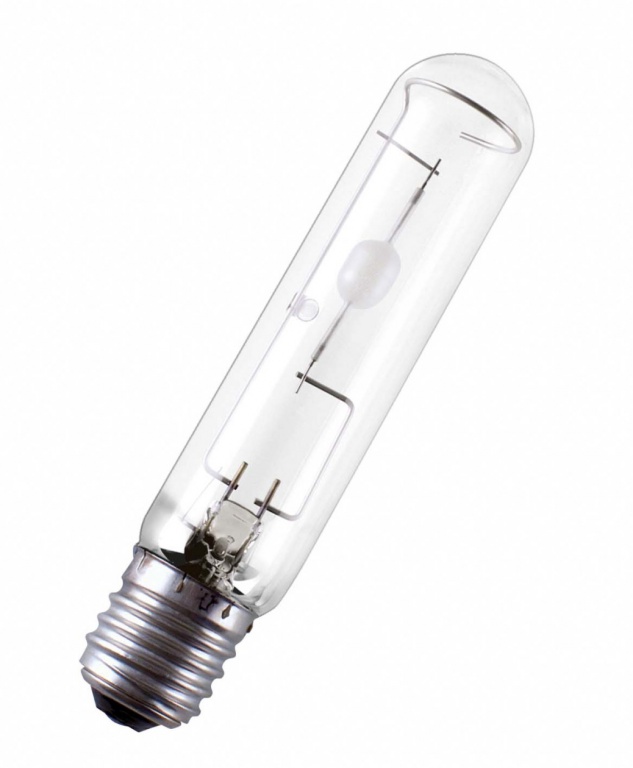

Metal Halide Lamp POWERBALL HCI-TT Metal Halide Lamps E27 / E40

Electrico24 code: 56327 | Osram code: 4008321689016

Price € 53,80 incl. VAT
€ 53,80 netto

Construction wattage [PICOS] 146.00 W
Nominal voltage 100 V
Nominal wattage 150.00 W
Color temperature 4090 K
Rated luminous flux 15600 lm
Length 210.0 mm
Dimmable Yes
Color rendering index Ra ≥90
Lamp mercury content 18.7 mg
Energy consumption 161 kWh/1000h
ILCOS MT/UB-150/942-H/E/SL-E40-47/210
Product weight 130.00 g
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

1 variant available

HCI-TT 150 W/942 NDL PB

Karta produktu PDF

Electrico24 code: 56327 | Osram code: 4008321689016 Construction wattage [PICOS]: 146.00 W Nominal voltage: 100 V Nominal wattage: 150.00 W Color temperature: 4090 K Rated luminous flux: 15600 lm Length: 210.0 mm Dimmable: Yes Color rendering index Ra: ≥90 Lamp mercury content: 18.7 mg Energy consumption: 161 kWh/1000h see more »

ILCOS: MT/UB-150/942-H/E/SL-E40-47/210 Product weight: 130.00 g Light center length (LCL): 132.0 mm Light color: 942 Rated LLMF at 4,000 h: 0.83 Rated LLMF at 6,000 h: 0.78 Rated LLMF at 8,000 h: 0.70 Rated LLMF at 12,000 h: 0.60 Rated lamp survival factor at 12,000 h: 0.95 Rated LLMF at 16,000 h: 0.55 Rated LLMF at 20,000 h: 0.50 Rated lamp survival factor at 16,000 h: 0.80 Rated lamp survival factor at 20,000 h: 0.40 Rated lamp efficacy (standard condition): 107 lm/W Rated LLMF at 2,000 h: 0.91 Lamp current: 1.80000 A PFC capacitor at 50 Hz: 20 µF Maximum permitted outer bulb temperature: 450 °C Lifespan B50: 18000 h Maximum permitted base edge temperature: 210 °C Lifespan B10: 14000 h Lifespan B5: 12000 h « hide more

€ 53,80 € 53,80 ex. VAT

Description / FAQ Warranty

Construction wattage [PICOS]	146.00 W
Nominal voltage	100 V
Nominal wattage	150.00 W
Color temperature	4090 K
Rated luminous flux	15600 lm

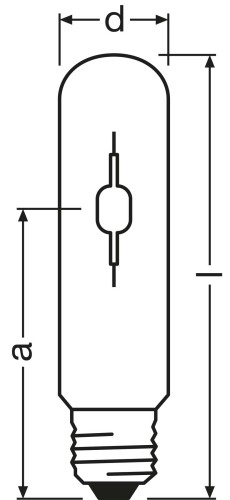

Length	210.0 mm
Dimmable	Yes
Color rendering index Ra	≥90
Lamp mercury content	18.7 mg
Energy consumption	161 kWh/1000h
ILCOS	MT/UB-150/942-H/E/SL-E40-47/210
Product weight	130.00 g
Light center length (LCL)	132.0 mm
Light color	942
Rated LLMF at 4,000 h	0.83
Rated LLMF at 6,000 h	0.78
Rated LLMF at 8,000 h	0.70
Rated LLMF at 12,000 h	0.60
Rated lamp survival factor at 12,000 h	0.95
Rated LLMF at 16,000 h	0.55
Rated LLMF at 20,000 h	0.50
Rated lamp survival factor at 16,000 h	0.80
Rated lamp survival factor at 20,000 h	0.40
Rated lamp efficacy (standard condition)	107 lm/W
Rated LLMF at 2,000 h	0.91
Lamp current	1.80000 A
PFC capacitor at 50 Hz	20 µF
Maximum permitted outer bulb temperature	450 °C
Lifespan B50	18000 h
Maximum permitted base edge temperature	210 °C
Lifespan B10	14000 h
Lifespan B5	12000 h
Electrical data
Ignition voltage	3.3 / 5.0 kVp
Photometrical data
UV protection	Yes
Dimensions & weight
Diameter	47.0 mm
Lifespan
Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.99
Rated lamp survival factor at 6,000 h	0.98
Operation mode LLMF/LSF	50 Hz
Rated lamp survival factor at 8,000 h	0.97
Additional product data
Base (standard designation)	E40
Design / version	Clear
System guarantee level	3 (2/5)
Capabilities
Burning position	Any
Enclosed luminaire required	Yes
Certificates & standards
Energy efficiency class	A+

Product benefits

Very long lifetime
High luminous efficacy
Good color rendering
Operation in existing HPS installations as ignition voltage of IEC 60662 is met
Energy savings of up to 70 % when replacing inefficient mercury vapor lamps (HQL)
Dimmable on conventional control gears and electronic control gears

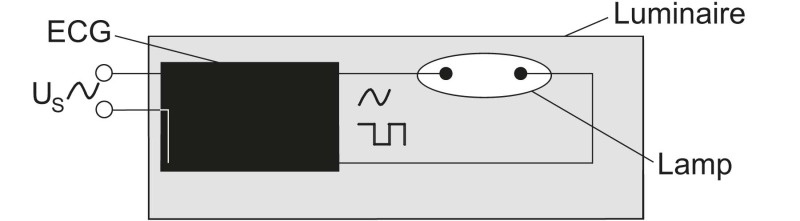

Optimum energy efficiency on POWERTRONIC PTo 3DIM ECGs
UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter

Areas of application

Streets
Outdoor lighting
Industrial installations
Exhibition halls and trade fairs
Approved only for use in enclosed luminaires
Outdoor applications only in suitable luminaires

Product features

White light due to POWERBALL ceramic technology
Light colors: warm white (830 WDL), neutral white (942 NDL)
Lamp survival factor: 95 % after 16,000 hours burning time (WDL lamps)
Average lifetime: up to 24,000 hours

Safety advice
Where possible, use a timer igniter (switch-off time of at least 15 minutes). Otherwise, switch off the luminaire for at least 15 minutes if a brief interruption has occurred to the mains voltage supply.

System guarantee
For the vast majority of our lamps we are offering an extended system guarantee in conjunction with OSRAM POWERTRONIC control gear.
