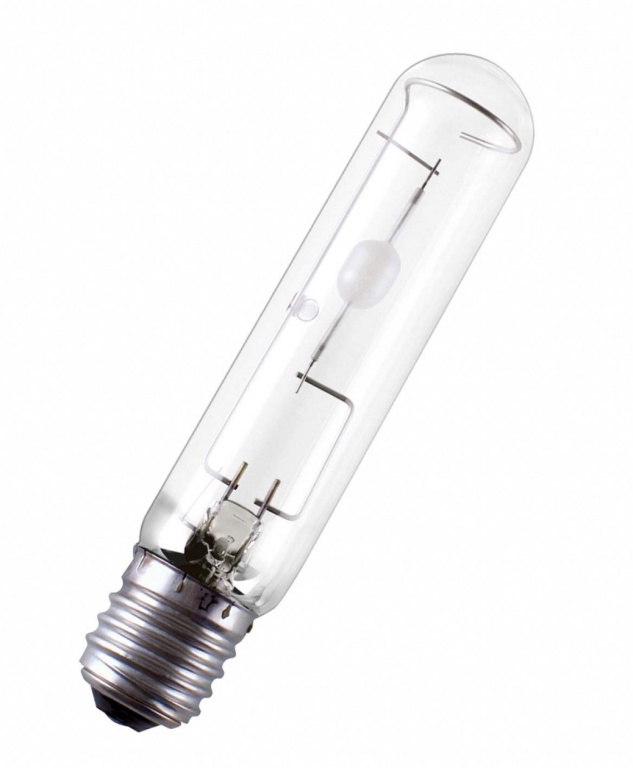

Metal Halide Lamp POWERBALL HCI-TT SUPER 4Y Metal Halide Lamps E27 / E40

Electrico24 code: 56324 | Osram code: 4052899108097

Price € 50,05 incl. VAT
€ 50,05 netto

Construction wattage [PICOS] 100.00 W
Nominal voltage 100 V
Nominal wattage 100.00 W
Rated luminous flux 12000 lm

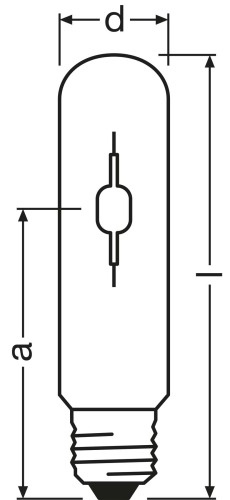

Diameter 47.0 mm
Length 210.0 mm
Base (standard designation) E40
Dimmable Yes
Lamp mercury content 13.2 mg
Energy consumption 110 kWh/1000h
ILCOS MT/UB-100/830-H/E/SL-E40-47/210
Product weight 135.00 g
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

1 variant available

HCI-TT 100 W/830 SUPER 4Y

Karta produktu PDF

Electrico24 code: 56324 | Osram code: 4052899108097 Construction wattage [PICOS]: 100.00 W Nominal voltage: 100 V Nominal wattage: 100.00 W Rated luminous flux: 12000 lm Diameter: 47.0 mm Length: 210.0 mm Base (standard designation): E40 Dimmable: Yes Lamp mercury content: 13.2 mg Energy consumption: 110 kWh/1000h see more »

ILCOS: MT/UB-100/830-H/E/SL-E40-47/210 Product weight: 135.00 g Light center length (LCL): 132.0 mm Rated LLMF at 4,000 h: 0.92 Rated LLMF at 6,000 h: 0.90 Rated LLMF at 8,000 h: 0.89 Rated LLMF at 12,000 h: 0.85 Rated LLMF at 16,000 h: 0.84 Rated lamp efficacy (standard condition): 120 lm/W Rated LLMF at 2,000 h: 0.94 Lamp current: 1.20000 A PFC capacitor at 50 Hz: 12 µF Ignition voltage: 3.3 / 5.0 kVp Maximum permitted outer bulb temperature: 450 °C Maximum permitted base edge temperature: 210 °C « hide more

€ 50,05 € 50,05 ex. VAT

Description / FAQ Warranty

Construction wattage [PICOS]	100.00 W
Nominal voltage	100 V
Nominal wattage	100.00 W
Rated luminous flux	12000 lm
Diameter	47.0 mm
Length	210.0 mm
Base (standard designation)	E40
Dimmable	Yes
Lamp mercury content	13.2 mg
Energy consumption	110 kWh/1000h
ILCOS	MT/UB-100/830-H/E/SL-E40-47/210
Product weight	135.00 g
Light center length (LCL)	132.0 mm
Rated LLMF at 4,000 h	0.92
Rated LLMF at 6,000 h	0.90
Rated LLMF at 8,000 h	0.89
Rated LLMF at 12,000 h	0.85
Rated LLMF at 16,000 h	0.84
Rated lamp efficacy (standard condition)	120 lm/W
Rated LLMF at 2,000 h	0.94
Lamp current	1.20000 A
PFC capacitor at 50 Hz	12 µF
Ignition voltage	3.3 / 5.0 kVp
Maximum permitted outer bulb temperature	450 °C
Maximum permitted base edge temperature	210 °C

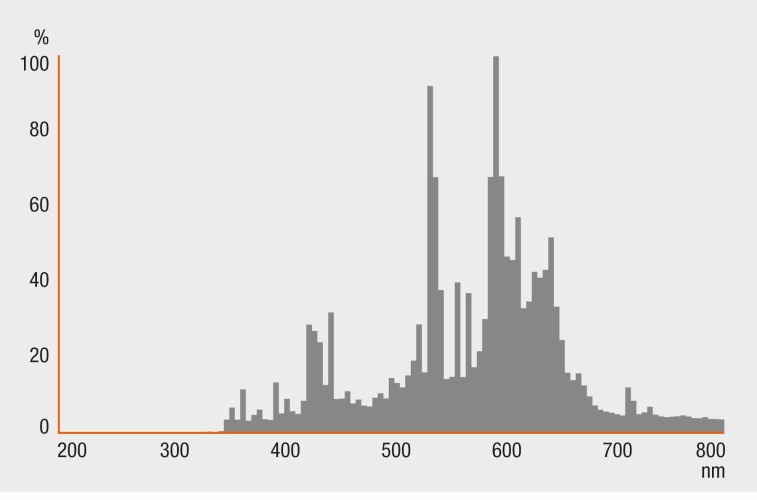

Photometrical data
Color temperature	3000 K
Color rendering index Ra	≥80
Light color	830
Rated LLMF at 20,000 h	0.75
UV protection	Yes
Lifespan
Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.99
Rated lamp survival factor at 6,000 h	0.98
Operation mode LLMF/LSF	50 Hz
Rated lamp survival factor at 8,000 h	0.97
Rated lamp survival factor at 12,000 h	0.97
Rated lamp survival factor at 16,000 h	0.95
Rated lamp survival factor at 20,000 h	0.78
Lifespan B50	24000 h
Lifespan B10	18000 h
Lifespan B5	16000 h
Additional product data
New article	NEW
Design / version	Clear
System guarantee level	3 (2/5)
Capabilities
Burning position	Any
Enclosed luminaire required	Yes
Certificates & standards
Energy efficiency class	A+

Product benefits

Up to 15 % higher lumen maintenance factor compared to HCI-TT standard lamps
Up to 30 % higher lum. efficacy for lamps ≤ 100 W (comp. to NAV-T Super 4Y/6Y)
Good color rendering
Operation in existing HPS installations as ignition voltage of IEC 60662 is met
Energy savings of up to 70 % when replacing inefficient mercury vapor lamps (HQL)
Dimmable on conventional control gears and electronic control gears

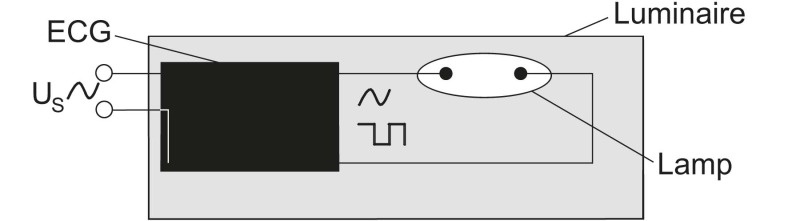

Optimum energy efficiency on POWERTRONIC PTo 3DIM ECGs
UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter

Areas of application

Streets
Outdoor lighting
Industrial installations
Exhibition halls and trade fairs
Approved only for use in enclosed luminaires
Outdoor applications only in suitable luminaires

Product features

White light due to POWERBALL ceramic technology
Light color: warm white (830 WDL)
Extended service lifetime: 4 years (at approx. 11 h/day)
Very high luminous efficacy: up to 125 lm/W
Lamp survival factor: 95 % after 16,000 hours burning time
Average lifetime: up to 24,000 hours
ErP compliant according to EU Directive 245/2009

Safety advice
Where possible, use a timer igniter (switch-off time of at least 15 minutes). Otherwise, switch off the luminaire for at least 15 minutes if a brief interruption has occurred to the mains voltage supply.

System guarantee
For the vast majority of our lamps we are offering an extended system guarantee in conjunction with OSRAM POWERTRONIC control gear.
