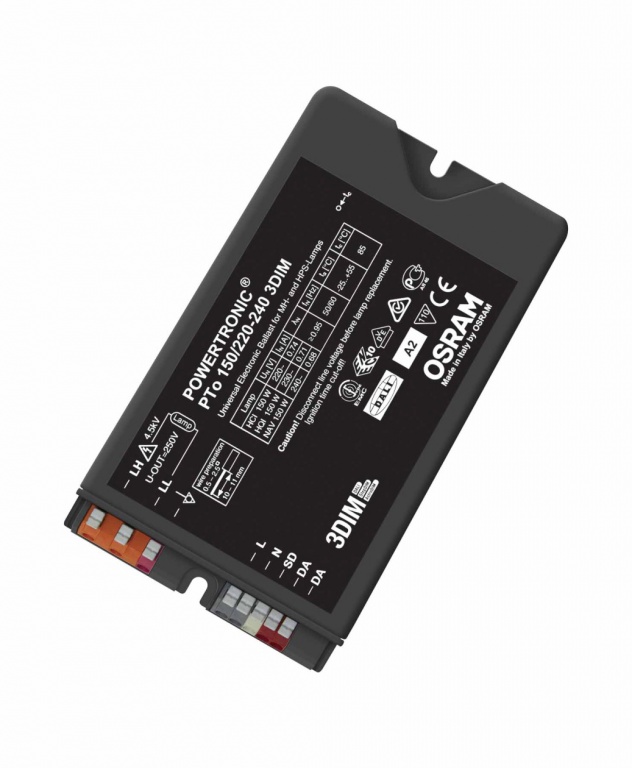

PTo 150/220...240 3DIM Electronic Ballasts For Discharge Lamps

Electrico24 code: 56586 | Osram code: 4008321956385

Price € 133,05 incl. VAT
€ 133,05 netto

Operating frequency 0.165 kHz
Length 158.0 mm
ECG efficiency 91 %
Inrush current 70 A
Max. no. of ECGs on circuit breaker 10 A 4
Max. no. of ECGs on circuit breaker 16 A 7
Width 94.0 mm
Height 42.5 mm
Mounting hole spacing, length 148.0 mm
Cable cross-section, input side 0.52.5 mm²
Product weight 900.00 g
Cable cross-section, output side 0.52.5 mm²
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 4

PTo 100/220...240 3DIM

Karta produktu PDF

Electrico24 code: 56585 | Osram code: 4008321956361 Operating frequency: 0.165 kHz Length: 158.0 mm ECG efficiency: 91 % Inrush current: 60 A Max. no. of ECGs on circuit breaker 10 A: 4 Max. no. of ECGs on circuit breaker 16 A: 7 Width: 94.0 mm Height: 42.5 mm Mounting hole spacing, length: 148.0 mm Cable cross-section, input side: 0.52.5 mm² see more »

Product weight: 900.00 g Cable cross-section, output side: 0.52.5 mm² Ambient temperature range: -25+55 °C Maximum temperature at tc test point: 75 °C Overheating protection: Power reduction and switch off at T > 75 °C at the tc point Approval marks approval: ENEC 10 / VDE / VDE-EMC / GOST / C-Tick Standards: Acc. to EN 61347-2-12/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to EN 62386-101/Acc. to EN 62386-102/Acc. to EN 62386-103 Dimming range: 60100 % Lamp wattage: 97 W Line current: 0.48 A System wattage: 106.00 W Max. no. of ECGs on 16A MCB with EBN-OS: 17 Max. capacitance of wire ECG/lamp: 120 pF « hide more

€ 133,05 € 133,05 ex. VAT

PTo 150/220...240 3DIM (currently dislayed)

Karta produktu PDF

Electrico24 code: 56586 | Osram code: 4008321956385 Operating frequency: 0.165 kHz Length: 158.0 mm ECG efficiency: 91 % Inrush current: 70 A Max. no. of ECGs on circuit breaker 10 A: 4 Max. no. of ECGs on circuit breaker 16 A: 7 Width: 94.0 mm Height: 42.5 mm Mounting hole spacing, length: 148.0 mm Cable cross-section, input side: 0.52.5 mm² see more »

Product weight: 900.00 g Cable cross-section, output side: 0.52.5 mm² Ambient temperature range: -25+45 °C Maximum temperature at tc test point: 75 °C Overheating protection: Power reduction and switch off at T > 85 °C at the tc point Approval marks approval: ENEC 10 / VDE / VDE-EMC / GOST / C-Tick Standards: Acc. to EN 61347-2-12/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to EN 62386-101/Acc. to EN 62386-102/Acc. to EN 62386-103 Dimming range: 60100 % Lamp wattage: 147 W Line current: 0.71 A System wattage: 160.00 W Max. no. of ECGs on 16A MCB with EBN-OS: 17 Max. capacitance of wire ECG/lamp: 120 pF « hide more

€ 133,05 € 133,05 ex. VAT

PTo 70/220...240 3DIM

Karta produktu PDF

Electrico24 code: 56592 | Osram code: 4008321959355 Operating frequency: 0.165 kHz Length: 133.0 mm ECG efficiency: 91 % Inrush current: 45 A Max. no. of ECGs on circuit breaker 10 A: 7 Max. no. of ECGs on circuit breaker 16 A: 13 Width: 77.0 mm Height: 48.0 mm Mounting hole spacing, length: 123.0 mm Cable cross-section, input side: 0.52.5 mm² see more »

Product weight: 730.00 g Cable cross-section, output side: 0.52.5 mm² Ambient temperature range: -25+55 °C Maximum temperature at tc test point: 75 °C Overheating protection: Power reduction and switch off at T > 75 °C at the tc point Approval marks approval: ENEC 10 / VDE / VDE-EMC / GOST / C-Tick Standards: Acc. to EN 61347-2-12/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to EN 62386-101/Acc. to EN 62386-102/Acc. to EN 62386-103 Dimming range: 60100 % Lamp wattage: 73 W Line current: 0.35 A System wattage: 80.00 W Max. no. of ECGs on 16A MCB with EBN-OS: 32 Max. capacitance of wire ECG/lamp: 120 pF « hide more

€ 152,63 € 152,63 ex. VAT

PTo 250/220...240 3DIM

Karta produktu PDF

Electrico24 code: 56588 | Osram code: 4008321863669 Operating frequency: 0.2000.240 kHz Length: 170.0 mm New article: NEW ECG efficiency: 93 % Inrush current: 4 A Max. no. of ECGs on circuit breaker 10 A: 7 Max. no. of ECGs on circuit breaker 16 A: 11 Width: 90.0 mm Height: 60.0 mm Mounting hole spacing, length: 160.0 mm see more »

Cable cross-section, input side: 1.02.5 mm² Product weight: 1375.00 g Cable cross-section, output side: 1.02.5 mm² Ambient temperature range: -25+55 °C Maximum temperature at tc test point: 85 °C Overheating protection: Power reduction and switch off at T > 85 °C at the tc point Approval marks approval: ENEC 10 / VDE / VDE-EMC / GOST Standards: Acc. to EN 61347-2-12/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to EN 62386-101/Acc. to EN 62386-102/Acc. to EN 62386-103 Dimming range: 60100 % Lamp wattage: 250 W Line current: 1.17 A System wattage: 270.00 W Max. capacitance of wire ECG/lamp: 200 pF « hide more

€ 165,87 € 165,87 ex. VAT

Description / FAQ Warranty

Operating frequency	0.165 kHz

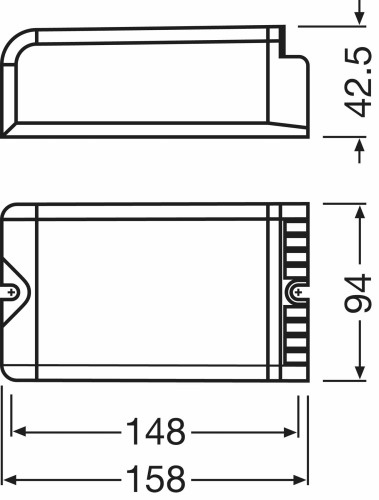

Length	158.0 mm
ECG efficiency	91 %
Inrush current	70 A
Max. no. of ECGs on circuit breaker 10 A	4
Max. no. of ECGs on circuit breaker 16 A	7
Width	94.0 mm
Height	42.5 mm
Mounting hole spacing, length	148.0 mm
Cable cross-section, input side	0.52.5 mm²
Product weight	900.00 g
Cable cross-section, output side	0.52.5 mm²
Ambient temperature range	-25+45 °C
Maximum temperature at tc test point	75 °C
Overheating protection	Power reduction and switch off at T > 85 °C at the tc point
Approval marks approval	ENEC 10 / VDE / VDE-EMC / GOST / C-Tick
Standards	Acc. to EN 61347-2-12/Acc. to EN 55015/Acc. to EN 61000-3-2/Acc. to EN 61547/Acc. to EN 62386-101/Acc. to EN 62386-102/Acc. to EN 62386-103
Dimming range	60100 %
Lamp wattage	147 W
Line current	0.71 A
System wattage	160.00 W
Max. no. of ECGs on 16A MCB with EBN-OS	17
Max. capacitance of wire ECG/lamp	120 pF
Electrical data
Power factor λ	0.95
Input voltage AC	220240 V
Mains frequency	5060 Hz
Surge capability (L-N)	3 kV
Surge capability (L/N-Ground)	4 kV
U-OUT (working voltage)	250 V
Input voltage range AC	198264 V
Ignition voltage	4.5 kVp
Max. working voltage between LH and LL	250 V
Protective conductor current	0.1 mA
Max. working voltage betw. LL/LH & earth	250 V
Dimensions & weight
Wire preparation length, input side	1011 mm
Wire preparation length, output side	1011 mm
Lifespan
ECG lifetime	60000 h
Additional product data
Encapsulated	Yes
Design / version	ECG outdoor
Required IP rating of luminaire	≥ 54
Capabilities
Dimmable	Yes
Suitable for fixtures with prot. class	I / II
Max. cable length to lamp/LED module	1.5 m

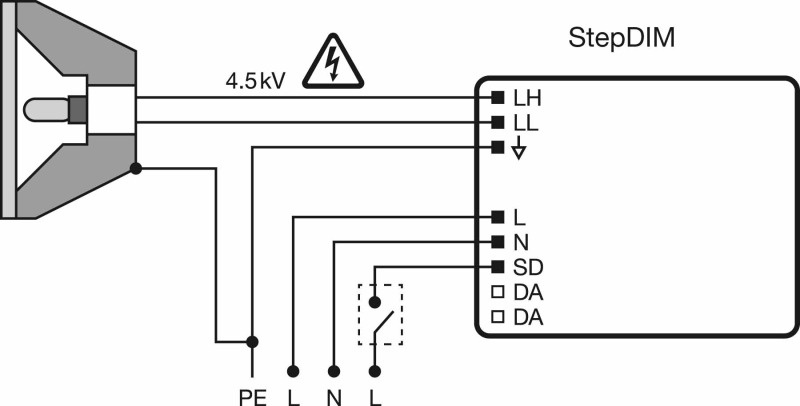

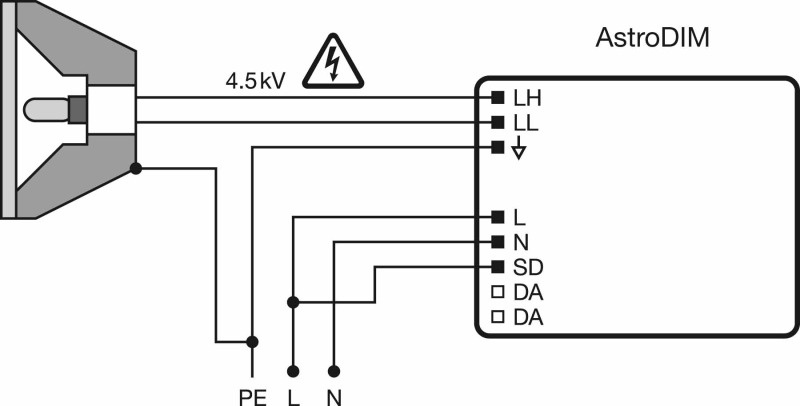

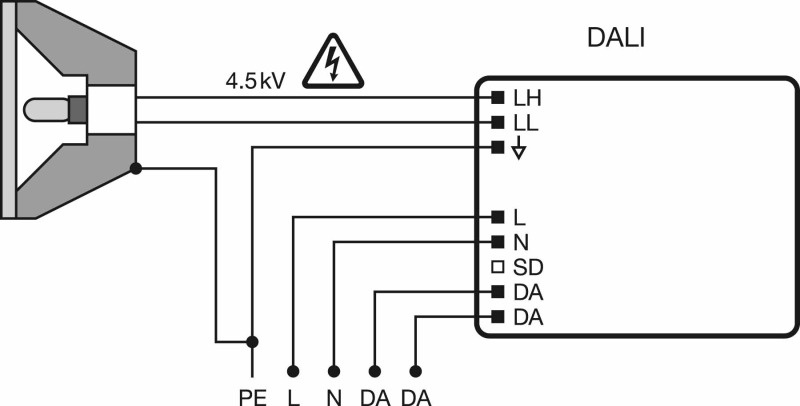

Dimming interface	DALI / StepDIM / AstroDIM
ECG reset time	> 0.5 s
Restriction on ignition time	20 min
Burn-in time prior to dimming operation	10 min
Lightning stroke protection	With connected equipotentiality-terminal 10 surges with 10 kV acc. to IEC 61000-4-5
Certificates & standards
Type of protection	IP20
EEI Energy Label	A2
Colors & materials
Casing material	Plastic

Product benefits

Energy savings up to 30 % (compared to CCG operation) thanks to 3DIM (except PTo 35)
High surge protection: up to 3 kV (L-N) / 4 kV (L/N-PE)
Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL)
Excellent thermal behavior for very high limit temperatures tc and ta

Areas of application

Suitable for luminaires of protection classes I and II
Suitable for outdoor applications in fixtures with IP > 54

Product features

3DIM functionality (StepDIM/AstroDIM/DALI)
Energy Efficiency Index EEI: A2
Lightning protection: up to 10 kV
Line voltage: 198…264 V
Line frequency: 50…60 Hz
Line harmonics according to EN 61000-3-2
Immunity according to EN 61547
RI suppression: to EN 55015 (A1: 2007) up to 300 MHz
Safety: to EN 61347-2-12
Luminous flux factor 1 compared with CCG operation
Not suitable for DC operation

Thermal characteristics
Ballast losses and lamp heat radiation can lead to heat accumulation in a completely closed case. Therefore it is necessary to ensure that the temperature at the measuring point tc of the ECG does not exceed the maximum value.
Attention!
For safety reasons disconnect the device before replacing the lamp!
