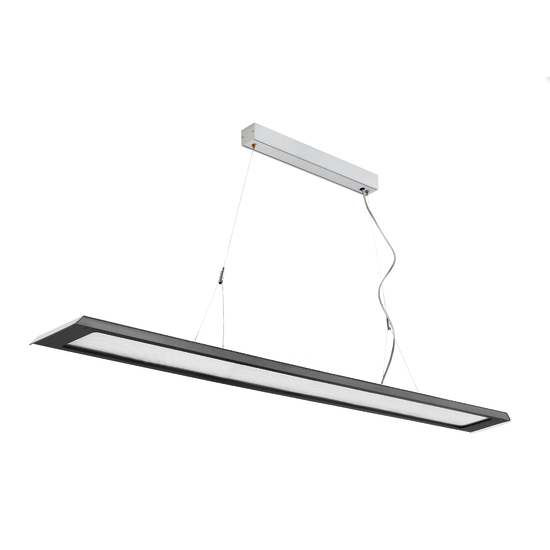

Luminaire Milena LED LED Pendant Luminaires

From € 159,36 incl. VAT
From € 159,36 ex. VAT

See variants (4)

Type of installation Suspended
Housing material Aluminum
Reflector None
Diffuser color None
Louver/shutter MPRM
Diffuser material Prismatic plastic
Light source LED
Number of light sources 1
Type of equipment AC
Voltage rating 230 V
Light source included Yes
Type of LED LG5630
▼ see full specification ▼

Ask for product Description / FAQ / Warranty PDF catalogue card Installation manual PDF EC Declaration of conformity

Score

rate product

Select your product from the 4

Milena LED 47W 3000K

Karta produktu PDF

Electrico24 code: 62535 | PXF Plexiform code: PX4020101 Light source power: 1x47W Luminarie luminous efficacy: 78 lm/W Luminarie luminous flux: 3650 lm Color temperature: 3000K Weight: 3.50 kg

€ 159,36 € 159,36 ex. VAT

Milena LED 47W 4000K

Karta produktu PDF

Electrico24 code: 62537 | PXF Plexiform code: PX4020115 Light source power: 1x47W Luminarie luminous efficacy: 80 lm/W Luminarie luminous flux: 3750 lm Color temperature: 4000K Weight: 3.50 kg

€ 159,38 € 159,38 ex. VAT

Milena LED 68W 3000K

Karta produktu PDF

Electrico24 code: 62536 | PXF Plexiform code: PX4020108 Light source power: 1x68W Luminarie luminous efficacy: 82 lm/W Luminarie luminous flux: 5550 lm Color temperature: 3000K Weight: 4.50 kg

€ 202,15 € 202,15 ex. VAT

Milena LED 68W 4000K

Karta produktu PDF

Electrico24 code: 62538 | PXF Plexiform code: PX4020122 Light source power: 1x68W Luminarie luminous efficacy: 83 lm/W Luminarie luminous flux: 5650 lm Color temperature: 4000K Weight: 4.50 kg

€ 202,17 € 202,17 ex. VAT

Description / FAQ Warranty

PXF - Mechanical data
Type of installation	Suspended
Housing material	Aluminum
PXF - Optical data
Reflector	None
Diffuser color	None
Louver/shutter	MPRM
Diffuser material	Prismatic plastic
PXF - Electrical data
Light source	LED
Number of light sources	1
Type of equipment	AC
Voltage rating	230 V
Light source included	Yes
Type of LED	LG5630
Power factor	0.98
SELV	Yes
PXF - Infromations
Color	Milticolor
PXF - Light data
Light color	White
Color rendering index	80
Class of luminarie	I
Light distribution	DI
PXF - Certificates
Degree of protection (IP)	IP40
Class of protection	I
Energy class	A+
CE	Yes
Light source protection	Yes

Modern LED lighting luminaire with high luminous efficiency and subtle design, is an ideal application for representative rooms.

Materials: powder painted aluminum profile (standard color: grey and black), microprismatic MPRM diffuser

Installation: suspended

Accessories: suspension included

Power: 230 V

	L	W	H
PX4020101 47W	1135	144	30
PX4020108 68W	1645	144	30
PX4020115 47W	1135	144	30
PX4020122 68W	1645	144	30

L - Length
W - Width
H - Height / Depth

Used marks:

SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum

OPAL - opal lampshade
PRM - prismatic lampshade
MPRM - microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass

DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution

NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling

EVG - electronic ballast
VVG - magnetic ballast

NM - non maintained
M - maintained
