PXF - Mechanical data |
|
| Type of installation | Suspended |
| Designed for light-line | Yes |
PXF - Optical data |
|
| Reflector | High gloss |
PXF - Electrical data |
|
| Light source | LED |
| Number of light sources | 1 |
| For through out powering | Yes |
| Type of equipment | AC |
| Voltage rating | 230 V |
| Light source included | Yes |
| Type of LED | LG6030 |
| Power factor | 0.97 |
| SELV | Yes |
| For emergency lighting | Yes |
PXF - Infromations |
|
| Color | White |
| Operating temperature range | 0 ... 40 ° |
| Control | Bez |
PXF - Light data |
|
| Light color | White |
| Color rendering index | 80 |
| Class of luminarie | I |
| Light distribution | DI |
PXF - Certificates |
|
| Degree of protection (IP) | IP20 |
| Class of protection | I |
| Energy class | A+ |
| CE | Yes |
| Light source protection | Yes |

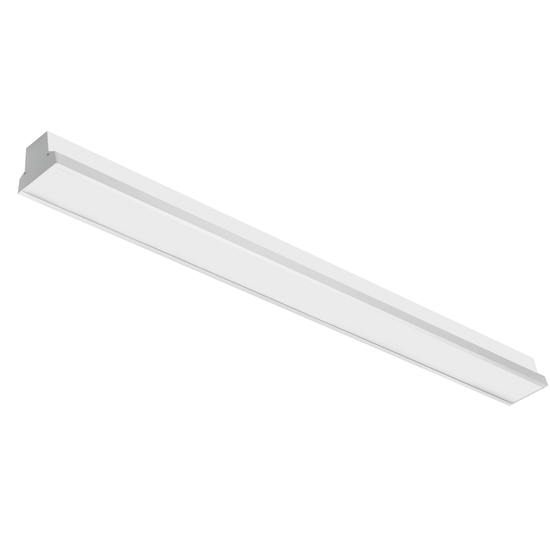

Industrial luminaire for LED light sources for inline installation. Luminaire has a simple way of installation without use of additional tools. Thank to LED it’s lighter, it’s exploitation is more energy efficient. Aluminum reflector optimize light distribution.
Designed for lighting service spaces, warehouses and supermarkets.
Materials: housing made of steel electrostatically painted in white, reflector made of polished
aluminum
Installation: suspended
Power: 230 V

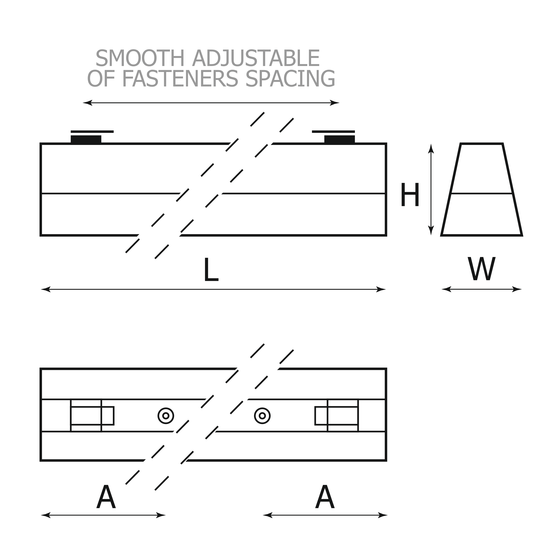

| L | W | H | |
|---|---|---|---|
| PX2066601 28W | 1200 | 100 | 75 |
| PX2066608 28W | 1200 | 100 | 75 |
| PX2066615 53W | 1200 | 100 | 75 |
| PX2066622 53W | 1200 | 100 | 75 |
| PX2066629 34W | 1500 | 100 | 75 |
| PX2066636 34W | 1500 | 100 | 75 |
| PX2066643 65W | 1500 | 100 | 75 |
| PX2066650 65W | 1500 | 100 | 75 |
| PX2066657 28W | 1200 | 100 | 75 |
| PX2066664 28W | 1200 | 100 | 75 |
| PX2066671 53W | 1200 | 100 | 75 |
| PX2066678 53W | 1200 | 100 | 75 |
| PX2066685 34W | 1500 | 100 | 75 |
| PX2066692 34W | 1500 | 100 | 75 |
| PX2066699 65W | 1500 | 100 | 75 |
| PX2066706 65W | 1500 | 100 | 75 |
L - Length
W - Width
H - Height / Depth
Used marks:
SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum
OPAL - opal lampshade
PRM - prismatic lampshade
MPRM - microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass
DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution
NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling
EVG - electronic ballast
VVG - magnetic ballast
NM - non maintained
M - maintained
