PXF - Mechanical data |
|
| Housing material | Steel sheet |
PXF - Optical data |
|
| Reflector | High gloss |
| Diffuser color | None |
| Louver/shutter | MPRM |
| Diffuser material | Prismatic plastic |
PXF - Electrical data |
|
| Light source | LED |
| Type of equipment | AC |
| Voltage rating | 230 V |
| Light source included | Yes |
| Type of LED | LG6030 |
| Power factor | 0.97 |
| SELV | Yes |
PXF - Infromations |
|
| Color | White |
| Operating temperature range | 0 ... 40 ° |
| Dimmable | Yes |
PXF - Light data |
|
| Light color | White |
| Color rendering index | 80 |
| Light distribution | DI |
PXF - Certificates |
|
| Degree of protection (IP) | IP44 |
| Class of protection | I |
| Energy class | A+ |
| CE | Yes |
| Light source protection | Yes |
| For ceiling installation, fire class "F" (L) | Yes |

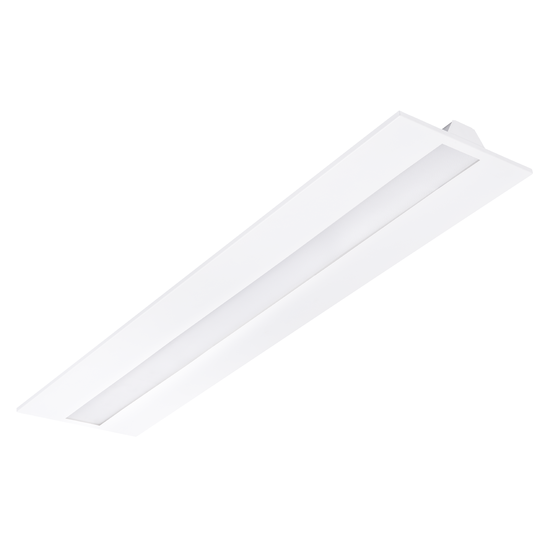

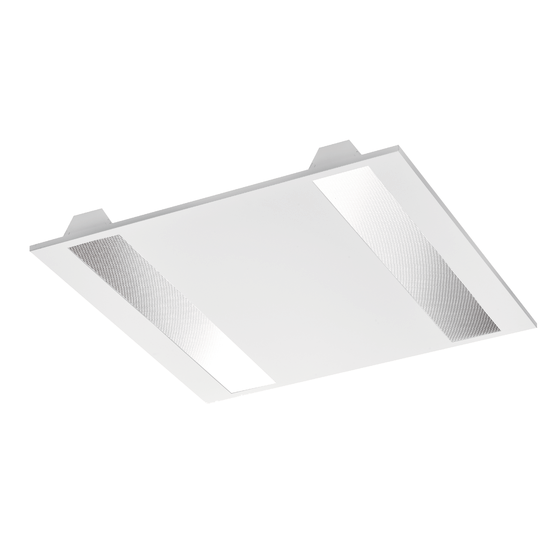

Modern luminaire designed for LED light sources of high lighting efficiency. SUN LED has an aesthetic appeal, it’s light and quick in installation. It also connect high lighting performance with low level of Unified Glare Rating (UGR). SUN LED has been equipped with a power supply with power factor cos ϕ > 0,95. DALI ballast – on request. Product is designed for offices, conference rooms and passageways.
Materials: Housing made of steel, electrostatically painted in white (standard color) with all other RAL colors available. Microprismatic diffuser (MPRM).
Installation: In the modular ceiling with visible grid, or into plaster-cardboard ceiling, suspended, surface mounted
Accessories: Plaster-cardboard frame to 600x600 version
Power: 230 V

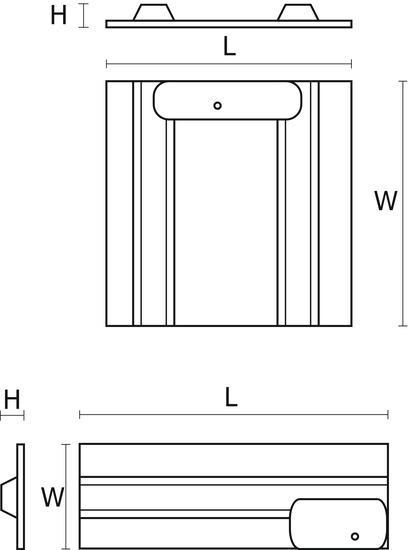

| L | W | H | |
|---|---|---|---|
| PX2065557 18W | 596 | 596 | 47 |
| PX2065564 18W | 596 | 596 | 47 |
| PX2065571 36W | 1196 | 296 | 47 |
| PX2065578 36W | 1196 | 296 | 47 |
| PX2065585 18W | 596 | 596 | 47 |
| PX2065592 18W | 596 | 596 | 47 |
| PX2065599 36W | 1196 | 296 | 47 |
| PX2065606 36W | 1196 | 296 | 47 |
| PX2065501 22W | 596 | 596 | 47 |
| PX2065508 22W | 596 | 596 | 47 |
| PX2065515 44W | 1196 | 296 | 47 |
| PX2065522 44W | 1196 | 296 | 47 |
| PX2065529 22W | 596 | 596 | 47 |
| PX2065536 22W | 596 | 596 | 47 |
| PX2065543 44W | 1196 | 296 | 47 |
| PX2065550 44W | 1196 | 296 | 47 |
L - Length
W - Width
H - Height / Depth
Used marks:
SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum
OPAL - opal lampshade
PRM - prismatic lampshade
MPRM - microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass
DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution
NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling
EVG - electronic ballast
VVG - magnetic ballast
NM - non maintained
M - maintained
PXF Plexiform https://www.electrico24.eu/uploads/producer_logos/2855e4bbbfab7c351abefdfa4e5ea3b0.jpg
Luminaire Sun LED
