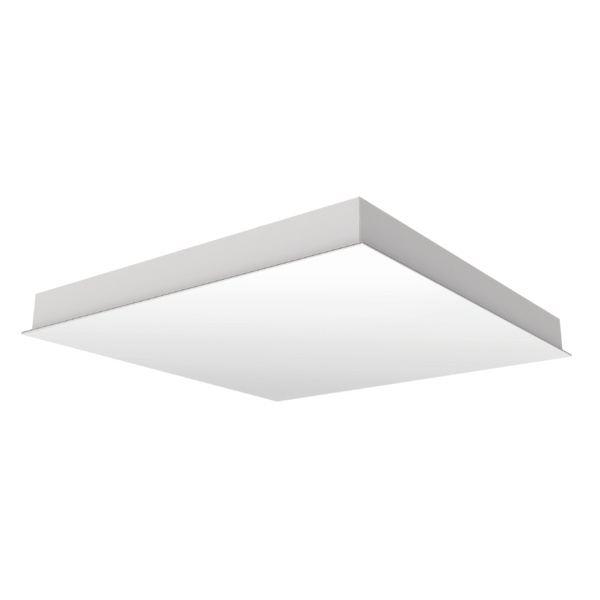

LUGCLASSIC LED recessed LED Panels Recessed

From € 216,58 incl. VAT
From € 216,58 ex. VAT

See variants (8)

Mounting directly in the ceiling construction
Body powder-painted steel sheet
Includes light source yes
Application offices, hospitals, laboratories, supermarkets, classrooms, auditorium
Available on request emergency kit LED, luminaires for KNAUF, AMF, ROCKFON ceilings (on request)
▼ see full specification ▼

Ask for product Description / FAQ / Warranty CE Conformity Declaration Product sheet

Score

rate product

Select your product from the 8

LUGCLASSIC LED 600x600 recessed ED 5000lm/840 PLX IP44 white

Karta produktu PDF

Electrico24 code: 70209 | LUG code: 060141.5L06.315 Lumen LED[lm]: 5000 Luminaire power [W]: 37 Power LED[W]: 31 CRI/Ra: > 80 Colour temperature [K]: 4000 Efficacy[lm/W]: 115 Lumen luminaire[lm]: 4250

€ 216,58 € 216,58 ex. VAT

LUGCLASSIC LED 600x600 recessed ED 4800lm/830 PLX IP44 white

Karta produktu PDF

Electrico24 code: 70208 | LUG code: 060141.5L05.315 Lumen LED[lm]: 4800 Luminaire power [W]: 37 Power LED[W]: 31 CRI/Ra: > 80 Colour temperature [K]: 3000 Efficacy[lm/W]: 114 Lumen luminaire[lm]: 4200

€ 216,59 € 216,59 ex. VAT

LUGCLASSIC LED 625x625 recessed ED 4800lm/830 PLX IP44 white

Karta produktu PDF

Electrico24 code: 70212 | LUG code: 060141.5L05.325 Lumen LED[lm]: 4800 Luminaire power [W]: 37 Power LED[W]: 31 CRI/Ra: > 80 Colour temperature [K]: 3000 Efficacy[lm/W]: 114 Lumen luminaire[lm]: 4200

€ 222,81 € 222,81 ex. VAT

LUGCLASSIC LED 625x625 recessed ED 5000lm/840 PLX IP44 white

Karta produktu PDF

Electrico24 code: 70213 | LUG code: 060141.5L06.325 Lumen LED[lm]: 5000 Luminaire power [W]: 37 Power LED[W]: 31 CRI/Ra: > 80 Colour temperature [K]: 4000 Efficacy[lm/W]: 115 Lumen luminaire[lm]: 4250

€ 222,81 € 222,81 ex. VAT

LUGCLASSIC LED 600x600 recessed ED 10000lm/840 PLX IP44 white

Karta produktu PDF

Electrico24 code: 70211 | LUG code: 060141.5L08.315 Lumen LED[lm]: 10000 Luminaire power [W]: 74 Power LED[W]: 62 CRI/Ra: > 80 Colour temperature [K]: 4000 Efficacy[lm/W]: 115 Lumen luminaire[lm]: 8500

€ 244,02 € 244,02 ex. VAT

LUGCLASSIC LED 600x600 recessed ED 9600lm/830 PLX IP44 white

Karta produktu PDF

Electrico24 code: 70210 | LUG code: 060141.5L07.315 Lumen LED[lm]: 9600 Luminaire power [W]: 74 Power LED[W]: 62 CRI/Ra: > 80 Colour temperature [K]: 3000 Efficacy[lm/W]: 114 Lumen luminaire[lm]: 8400

€ 244,06 € 244,06 ex. VAT

LUGCLASSIC LED 625x625 recessed ED 10000lm/840 PLX IP44 white

Karta produktu PDF

Electrico24 code: 70215 | LUG code: 060141.5L08.325 Lumen LED[lm]: 10000 Luminaire power [W]: 74 Power LED[W]: 62 CRI/Ra: > 80 Colour temperature [K]: 4000 Efficacy[lm/W]: 115 Lumen luminaire[lm]: 8500

€ 250,47 € 250,47 ex. VAT

LUGCLASSIC LED 625x625 recessed ED 9600lm/830 PLX IP44 white

Karta produktu PDF

Electrico24 code: 70214 | LUG code: 060141.5L07.325 Lumen LED[lm]: 9600 Luminaire power [W]: 74 Power LED[W]: 62 CRI/Ra: > 80 Colour temperature [K]: 3000 Efficacy[lm/W]: 114 Lumen luminaire[lm]: 8400

€ 250,47 € 250,47 ex. VAT

Description / FAQ Warranty

Technical Data
Mounting	directly in the ceiling construction
Body	powder-painted steel sheet
Electrical Data
Includes light source	yes
General Data
Application	offices, hospitals, laboratories, supermarkets, classrooms, auditorium
Additional Info
Available on request	emergency kit LED, luminaires for KNAUF, AMF, ROCKFON ceilings (on request)

Due to excellent efficacy and quality, the luminaire meets the requirements of the most demanding lighting projects, high quality diffuser providing balanced uniformity and high luminaire efficiency of more than 100lm/W.

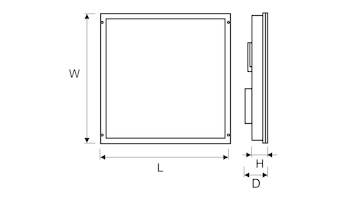

Code	Dimensions [mm] L W H D	Pallet quantity	Quantity in package	Net weight[kg]
060141.5L05.315	595 595 72 103	32	1	4,5
060141.5L06.315	595 595 72 103	32	1	4,5
060141.5L07.315	595 595 72 103	32	1	4,5
060141.5L08.315	595 595 72 103	32	1	4,5
060141.5L05.325	622 622 63 93	32	1	4,7
060141.5L06.325	622 622 63 93	32	1	4,7
060141.5L07.325	622 622 63 93	32	1	4,7
060141.5L08.325	622 622 63 93	32	1	4,7

Oznaczenia opraw:

HF - high frequency - luminaires with electronic ballast
IN - inductive - luminaires with magnetic ballast without compensation
IC - inductive compensated - luminaires with magnetic ballast with compensation
