PXF - Mechanical data |
|
| Type of installation | Recessed |
| Housing material | Steel sheet |
PXF - Optical data |
|
| Diffuser color | None |
PXF - Electrical data |
|
| Light source | LED |
| Number of light sources | 1 |
| Type of equipment | AC |
| Voltage rating | 230 V |
| Light source included | Yes |
| Type of LED | LG6030 |
| SELV | Yes |
PXF - Infromations |
|
| Color | Grey |
PXF - Light data |
|
| Light color | White |
| Color rendering index | 80 |
| Class of luminarie | I |
| Light distribution | DI |
PXF - Certificates |
|
| Degree of protection (IP) | IP44 |
| Class of protection | I |
| CE | Yes |
| Light source protection | Yes |
| For ceiling installation, fire class "F" (L) | Yes |

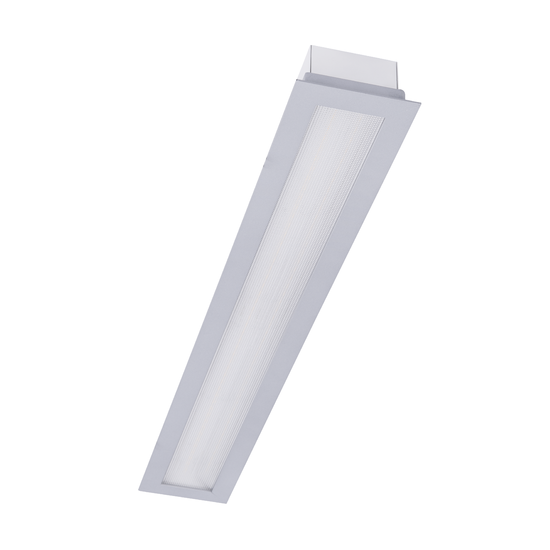

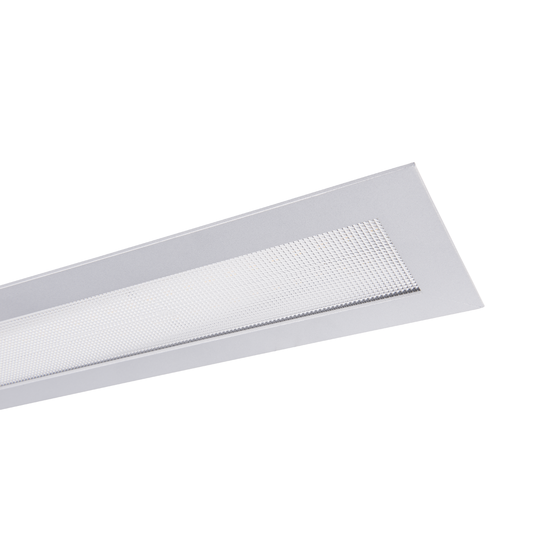

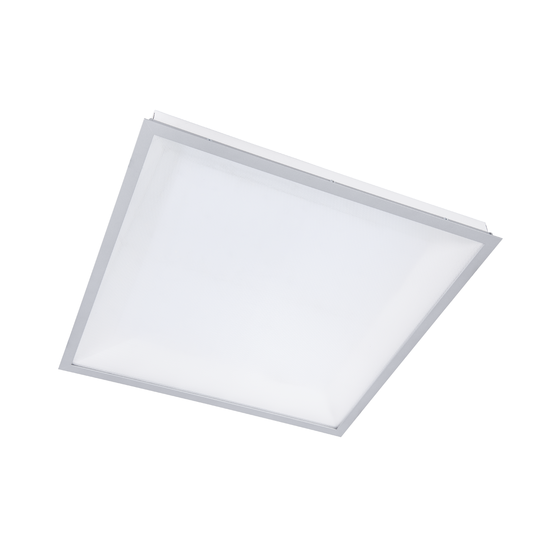

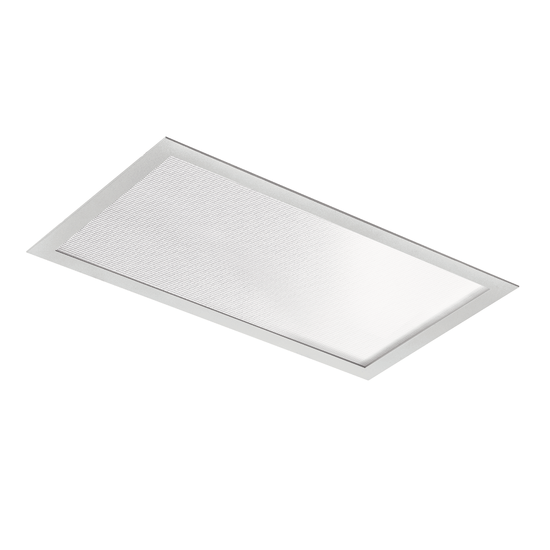

LED luminaire for universal use. Made with use of energy-saving LEDs of high luminous efficiency from reputable manufacturers. FUZO have been provided with power supply with power factor cos ϕ > 0,95. Available with housing of different colors, suitable for any interior color. Application: offices, conference rooms, corridors
Materials: frame made of electrostatically painted
sheet aluminium (standard – grey). Frame can
be painted in any RAL color. White housing made
of sheet steel. MPRM prismatic diffusor.
Installation: suspended ceiling with visible supporting
structure or plaster cardboard ceiling
Power: 230 V

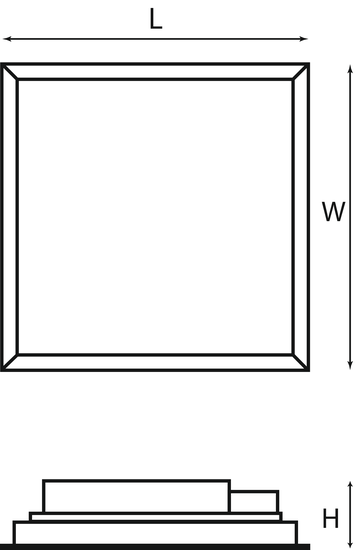

| L | W | H | C | D | |
|---|---|---|---|---|---|
| PX2065315 11W | 240 | 240 | 82 | 230 | 230 |
| PX2065415 11W | 240 | 240 | 82 | 230 | 230 |
| PX2065322 22W | 240 | 240 | 82 | 230 | 230 |
| PX2065422 22W | 240 | 240 | 82 | 230 | 230 |
| PX2065330 21W | 420 | 240 | 82 | 410 | 230 |
| PX2065430 21W | 420 | 240 | 82 | 410 | 230 |
| PX2065340 31W | 420 | 420 | 82 | 410 | 410 |
| PX2065440 31W | 420 | 420 | 82 | 410 | 410 |
| PX2065444 44W | 595 | 595 | 52 | 585 | 585 |
| PX2065448 44W | 595 | 595 | 52 | 585 | 585 |
| PX2065451 20W | 618 | 91 | 82 | 600 | 73 |
| PX2065458 20W | 618 | 91 | 82 | 600 | 73 |
| PX2065465 28W | 918 | 91 | 82 | 900 | 73 |
| PX2065472 28W | 918 | 91 | 82 | 900 | 73 |
| PX2065479 38W | 1218 | 91 | 82 | 1200 | 73 |
| PX2065486 38W | 1218 | 91 | 82 | 1200 | 73 |
| PX2065101 11W | 240 | 240 | 82 | 230 | 230 |
| PX2065108 11W | 240 | 240 | 82 | 230 | 230 |
| PX2065115 22W | 240 | 240 | 82 | 230 | 230 |
| PX2065122 22W | 240 | 240 | 82 | 230 | 230 |
| PX2065129 21W | 420 | 240 | 82 | 410 | 230 |
| PX2065136 21W | 420 | 240 | 82 | 410 | 230 |
| PX2065143 31W | 420 | 420 | 82 | 410 | 410 |
| PX2065150 31W | 420 | 420 | 82 | 410 | 410 |
| PX2065157 44W | 595 | 595 | 52 | 585 | 585 |
| PX2065164 44W | 595 | 595 | 52 | 585 | 585 |
| PX2065171 20W | 618 | 91 | 82 | 600 | 73 |
| PX2065178 20W | 618 | 91 | 82 | 600 | 73 |
| PX2065185 28W | 918 | 91 | 82 | 900 | 73 |
| PX2065192 28W | 918 | 91 | 82 | 900 | 73 |
| PX2065199 38W | 1218 | 91 | 82 | 1200 | 73 |
| PX2065206 38W | 1218 | 91 | 82 | 1200 | 73 |
L - Length
W - Width
H - Height / Depth
C - Installation length
D - Installation width
Used marks:
SLA - louvers made of polished aluminum
SLB - louvers made of aluminum powder painted in white
PAR - parabolic louver of anodized, polished aluminum
PAR-S - parabolic louver of anodized, matte aluminum
OPAL - opal lampshade
PRM - prismatic lampshade
MPRM - microprism lampshade
CLEAR -colorless lampshade
PC - policarbonate
AC - acrylic
SH - toughened glass
DI - luminaire with direct light distribution
IN - luminaire with indirect light distribution
DI-IN - luminaire with mixed light distribution
NT - surface mounted
600x600 - modular ceiling 600x600 with visible supported structure
GK - plasterboard suspended ceiling
EVG - electronic ballast
VVG - magnetic ballast
NM - non maintained
M - maintained
