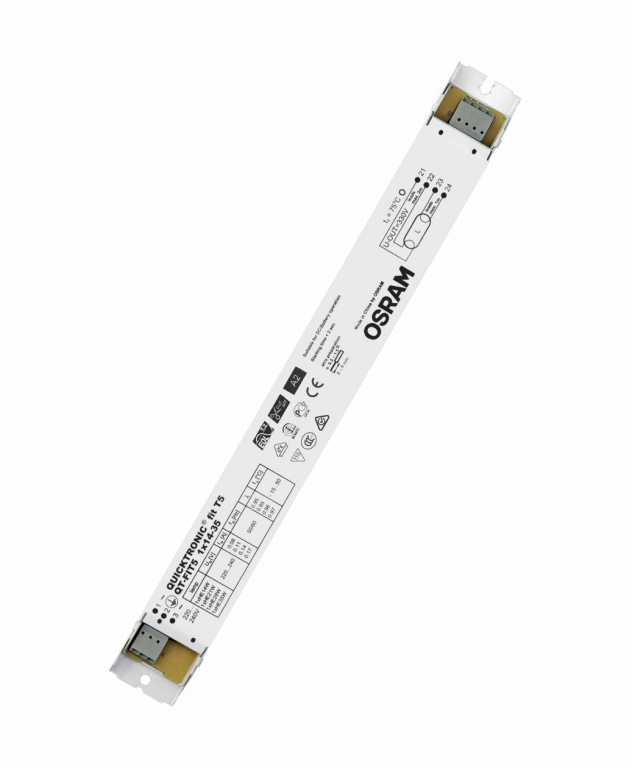

QUICKTRONIC FIT 5 ECG for FL 16mm Fluorescent Electronic Gear

From € 16,30 incl. VAT
From € 16,30 ex. VAT

See variants (5)

Nominal voltage 220240 V
Mains frequency 5060 Hz
Starting time 2.0 s
Length 280.0 mm
Height 21.0 mm
Mounting hole spacing, length 270.0 mm
Cable cross-section, input side 0.51.5 mm²
Cable cross-section, output side 0.51.5 mm²
Suitable for fixtures with prot. class I
End of lamp life safety shutdown EOL T.2
Approval marks approval VDE / ENEC 10 / VDE-EMC
EEI Energy Label A2
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 5

QT-FIT5 1X14...35

Karta produktu PDF

Electrico24 code: 57025 | Osram code: 4008321971234 Nominal voltage: 220240 V Operating frequency: 4050 kHz Starting time: 2.0 s Length: 280.0 mm Input voltage AC: 198264 V Mains frequency: 5060 Hz Inrush current: 24 A Max. no. of ECGs on circuit breaker 10 A: 17 Max. no. of ECGs on circuit breaker 16 A: 28 Width: 30.0 mm see more »

Height: 21.0 mm Mounting hole spacing, length: 270.0 mm Cable cross-section, input side: 0.51.5 mm² Product weight: 160.00 g Cable cross-section, output side: 0.51.5 mm² Ambient temperature range: -15+50 °C ECG lifetime: 50000 h Suitable for fixtures with prot. class: I Approval marks approval: VDE / ENEC 10 / VDE-EMC Standards: Acc. to EN 61547/IEC 61547/Acc. to EN 61347-2-3/IEC 61347-2-3/Acc. to EN 61000-3-2/IEC 61000-3-2/Acc. to EN 55015:2006 + A1:2007 + A2:2009 Input voltage DC: 185264 V EEI Energy Label: A2 End of lamp life safety shutdown: EOL T.2 Protection class: I « hide more

€ 16,30 € 16,30 ex. VAT

QT-FIT5 1X49

Karta produktu PDF

Electrico24 code: 56472 | Osram code: 4008321832139 Input voltage AC: 198264 V Inrush current: 24 A Max. no. of ECGs on circuit breaker 10 A: 17 Max. no. of ECGs on circuit breaker 16 A: 28 Width: 30.0 mm Product weight: 155.00 g ECG lifetime: 50000 h Standards: Acc. to EN 61347-2-12/IEC 61347-2-12/Acc. to EN 55015:2006 + A1:2007 + A2:2009/Acc. to EN 61000-3-2/IEC 61000-3-2/Acc. to EN 61547/IEC 61547 Input voltage DC: 186276 V Protection class: I/II

€ 16,30 € 16,30 ex. VAT

QT-FIT5 2X14...35

Karta produktu PDF

Electrico24 code: 56473 | Osram code: 4008321971258 Operating frequency: 4050 kHz Width: 30.0 mm Product weight: 181.00 g Standards: acc. to EN 61347-2-3/IEC 61347-2-3/acc. to EN 55015:2006 + A1:2007 + A2:2009/acc. to EN 61000-3-2/IEC 61000-3-2/acc. to EN 61547/IEC 61547 Input voltage DC: 198264 V Protection class: 1

€ 17,80 € 17,80 ex. VAT

QT-FIT5 2X49

Karta produktu PDF

Electrico24 code: 56474 | Osram code: 4008321832153 Input voltage AC: 198264 V Inrush current: 53 A Max. no. of ECGs on circuit breaker 10 A: 8 Max. no. of ECGs on circuit breaker 16 A: 13 Width: 30.0 mm Product weight: 185.00 g ECG lifetime: 50000 h Standards: acc. to EN 61347-2-3/IEC 61347-2-3/acc. to EN 55015:2006 + A1:2007 + A2:2009/acc. to EN 61000-3-2/IEC 61000-3-2/acc. to EN 61547/IEC 61547 Input voltage DC: 185264 V

€ 17,80 € 17,80 ex. VAT

QT-FIT5 3X14,4X14

Karta produktu PDF

Electrico24 code: 56475 | Osram code: 4008321971210 Operating frequency: 4050 kHz Input voltage AC: 198264 V Inrush current: 40 A Max. no. of ECGs on circuit breaker 10 A: 12 Max. no. of ECGs on circuit breaker 16 A: 19 Width: 40.0 mm Product weight: 202.00 g ECG lifetime: 50000 h Standards: Acc. to EN 61347-2-3/IEC 61347-2-3/Acc. to EN 55015:2006 + A1:2007 + A2:2009/Acc. to EN 61000-3-2/IEC 61000-3-2/Acc. to EN 61547/IEC 61547 Type of protection: IP20 Input voltage DC: 185264 V Protection class: I

€ 25,20 € 25,20 ex. VAT

Description / FAQ Warranty

Electrical data
Nominal voltage	220240 V
Mains frequency	5060 Hz
Light technical data
Starting time	2.0 s

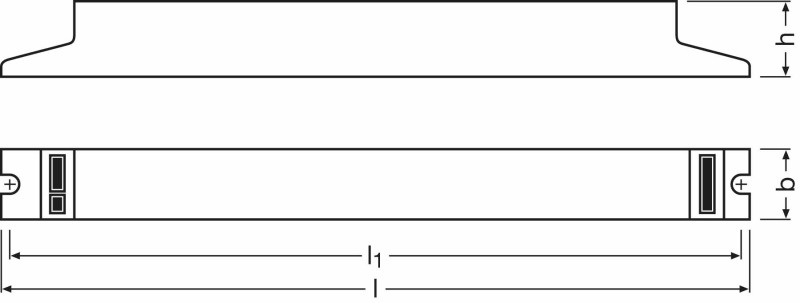

Dimensions & weight
Length	280.0 mm
Height	21.0 mm
Mounting hole spacing, length	270.0 mm
Cable cross-section, input side	0.51.5 mm²
Cable cross-section, output side	0.51.5 mm²
Capabilities
Suitable for fixtures with prot. class	I
End of lamp life safety shutdown	EOL T.2
Certificates & standards
Approval marks approval	VDE / ENEC 10 / VDE-EMC
EEI Energy Label	A2
Temperatures
Ambient temperature range	-15+50 °C

Product benefits

Long lamp life
No adverse effect from frequent on/off switching
Automatic restart after lamp replacement
Perfect lamp start for applications with motion sensors
VDE/VDE EMC certified system
Very high energy efficiency due to cut-off technology

Areas of application

Open-plan offices, corridors and storage rooms
Public buildings
Strip lighting
Suitable for emergency lighting (DC operation)
Suitable for luminaires of protection class I
Modernization of existing systems

Product features

Supply voltage: 220…240 V
Line voltage: 198…264 V
Line frequency: 50…60 Hz
Lamp start with optimum filament preheating
Energy Efficiency Index EEI: A2
Automatic shutdown of defective lamps and at end of life (EoL T.2)
Lamp operation: to EN 60929
Safety: to EN 61347-2-3
