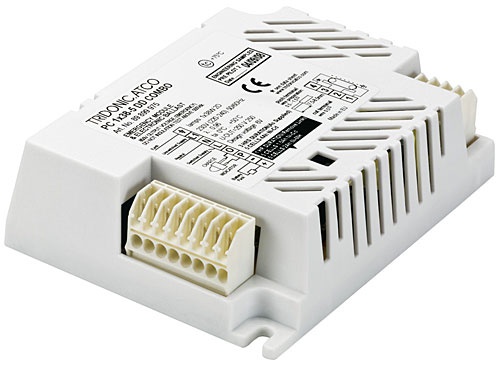

PC CFL COMBO, 220 - 240 V 50/60 Hz Fluorescent Electronic Gear

Tridonic PC CFL COMBO, 220 – 240 V 50/60 Hz

From € 98,73 incl. VAT
From € 98,73 ex. VAT

See variants (2)

CE CE
EAC EAC
ENEC ENEC
RCM RCM
RoHs RoHs
Rated supply voltage 220 – 240 V
Mains frequency 50 / 60 Hz
Overvoltage protection 320 V (for 1 h)
Ambient temperature ta 0 ... +55 °C
tc point max. 75 °C
Leakage current (PE) < 0.5 mA
Type of protection IP20
▼ see full specification ▼

Ask for product Description / FAQ / Warranty Data sheet

Score

rate product

Select your product from the 2

PC 1x18-4 TC COMBO

Karta produktu PDF

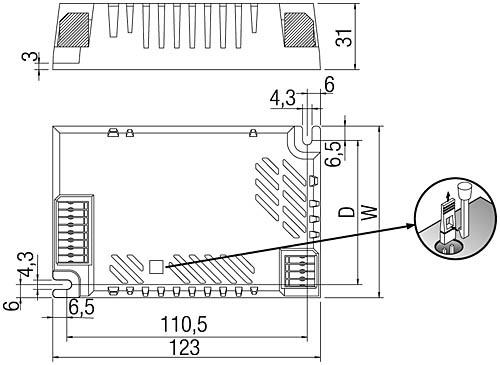

Electrico24 code: 72631 | Tridonic code: 89899927 Weight per pc.: 0.220 kg λ: 0.96 Hole spacing D: 66.5 mm Packaging, carton: 25 pc(s). Packaging, pallet: 700 pc(s). DimensionsL x W x H: 123 x 79 x 31 mm Lamp type: TC-TEL Lamp wattage: 1 x 18 W Circuit power: 24 W Lamp power: 16.5 W see more »

Mains current: 0.110 A Number of cells: 4 Emergency operation BLF: 0.150 Emergency operation EBLF: 0.150 Normal operation BLF: 1.00 Rated duration: 3/1 h « hide more

€ 120,46 € 98,73 ex. VAT

PC 2x26/32-5 TC COMBO

Karta produktu PDF

Electrico24 code: 72640 | Tridonic code: 89899998 Weight per pc.: 0.245 kg λ: 0.98 Hole spacing D: 89.5 mm Packaging, carton: 25 pc(s). Packaging, pallet: 450 pc(s). DimensionsL x W x H: 123 x 102 x 31 mm Lamp type: TC-TEL Lamp wattage: 2 x 32 W Circuit power: 71 W Lamp power: 62.0 W see more »

Mains current: 0.330 A Number of cells: 5 Emergency operation BLF: 0.100 Emergency operation EBLF: 0.085 Normal operation BLF: 1.00 Rated duration: 3/1 h « hide more

€ 148,56 € 121,77 ex. VAT

Description / FAQ Warranty

Tridonic - parametry
	CE
	EAC
	ENEC
	RCM
	RoHs
Rated supply voltage	220 – 240 V
Mains frequency	50 / 60 Hz
Overvoltage protection	320 V (for 1 h)
Ambient temperature ta	0 ... +55 °C
tc point max.	75 °C
Leakage current (PE)	< 0.5 mA
Type of protection	IP20
Battery charging time	24 h
Mains voltage changeover threshold	According to EN 60598-2-22
Min. lamp starting temperature (emergency mode)	0 °C
Min. lamp starting temperature (normal operation)	-15 °C
Operating frequency (normal operation)	> 42 kHz
Operating frequency (emergency mode)	typ. 17 kHz
Lamp starting time (normal operation)	1.6 s
Battery charging current 4 Ah / 4 Ah NiMH (3 h application)	200 mA
Battery charging current 1.6 Ah / 2 Ah NiMH (1 h application)	100 mA

Combination of electronic ballast and emergency lighting unit
For compact fluorescent lamps
For manual testing of the emergency lighting function
5-year guarantee

Properties

Lightweight one-part emergency lighting unit
Simple wiring
No compatibility problems
3 h rated duration for TC-DD lamp variants
1 and 3 h rated duration for TC-D/T lamp variants
Selectable operating time (jumper)
Lamp warm start in normal operation
Filament heating in emergency operation for TC-D/T lamps
AC operation of all lamps
Automatic restart after relamping in normal operation
Green charge status display LED
Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
Optional test switch
Checking the emergency lighting function by interrupting the unswitched phase
Small dimensions
IDC (insulation displacement connection)
Electronically controlled battery charging
Deep discharge protection
Short-circuit-proof battery connection
Polarity reversal protection for battery

Batteries

Separate battery pack
High-temperature cells
NiCd or NiMH batteries
D, Cs or LA cells
4-year design life
1-year guarantee
