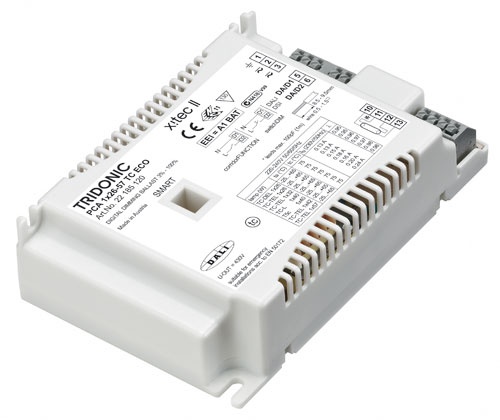

PCA TC EXCEL one4all xitec II, 18 - 57 W Fluorescent Electronic Gear

Tridonic PCA TC EXCEL one4all xitec II, 18 – 57 W

From € 85,57 incl. VAT
From € 85,57 ex. VAT

See variants (10)

CE CE
EAC EAC
EL EL
EMCVDE EMCVDE
ENEC ENEC
RCM RCM
RoHs RoHs
AC voltage range 198 – 264 V
DC voltage range 176 – 280 V (lamp start ≥ 198 V DC)
Mains frequency 0 / 50 / 60 Hz
Overvoltage protection 320 V AC, 1 h
Dimming range 3 – 100 %
▼ see full specification ▼

Ask for product Description / FAQ / Warranty Data sheet

Score

rate product

Select your product from the 10

PCA 2x26/32/42 TC EXCEL one4all xitec II

Karta produktu PDF

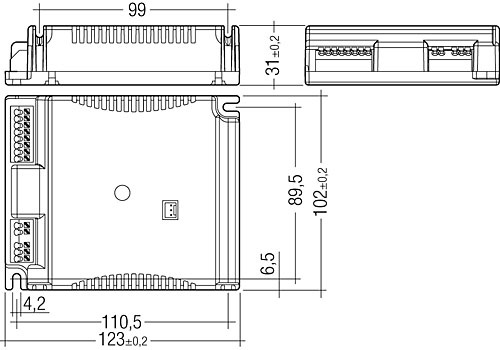

Electrico24 code: 72445 | Tridonic code: 22185129 Weight per pc.: 0.206 kg Ambient temperature ta: -25 ... +60 °C tc point max.: 75 °C Packaging, carton: 10 pc(s). Packaging, pallet: 500 pc(s). DimensionsL x W x H: 123 x 102 x 31 mm Lamp type: TC-TEL Lamp wattage: 2 x 42 W Circuit power: 88.5 W EEI: A1 BAT see more »

Lamp power: 84.0 W Current at 230 V, 50 Hz: 0.39 A λ at 230 V, 50 Hz: 0.98 « hide more

€ 85,57 € 85,57 ex. VAT

PCA 1x11/13 TC EXCEL one4all xitec II

Karta produktu PDF

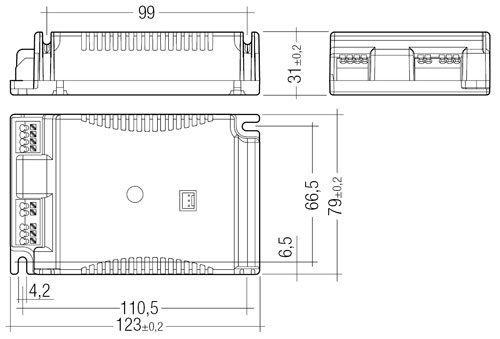

Electrico24 code: 72436 | Tridonic code: 22185134 Weight per pc.: 0.201 kg Ambient temperature ta: -25 ... +70 °C tc point max.: 75 °C Packaging, carton: 10 pc(s). Packaging, pallet: 500 pc(s). DimensionsL x W x H: 123 x 79 x 31 mm Lamp type: TC-TEL HE Lamp wattage: 1 x 17 W Circuit power: 19.0 W EEI: A1 BAT see more »

Lamp power: 17.5 W Current at 230 V, 50 Hz: 0.09 A λ at 230 V, 50 Hz: 0.98 « hide more

€ 133,84 € 109,71 ex. VAT

PCA 1x18 TC EXCEL one4all xitec II

Karta produktu PDF

Electrico24 code: 72437 | Tridonic code: 22185130 Weight per pc.: 0.147 kg Ambient temperature ta: -25 ... +70 °C tc point max.: 80 °C Packaging, carton: 10 pc(s). Packaging, pallet: 500 pc(s). DimensionsL x W x H: 123 x 79 x 31 mm Lamp type: TC-TEL Lamp wattage: 1 x 18 W Circuit power: 18.5 W EEI: A1 BAT see more »

Lamp power: 16.5 W Current at 230 V, 50 Hz: 0.09 A λ at 230 V, 50 Hz: 0.95 « hide more

€ 133,84 € 109,71 ex. VAT

PCA 1x18/24 TCL EXCEL one4all c xitec II

Karta produktu PDF

Electrico24 code: 72438 | Tridonic code: 22185251 Weight per pc.: 0.147 kg Ambient temperature ta: -25 ... +65 °C tc point max.: 75 °C Packaging, carton: 10 pc(s). Packaging, pallet: 500 pc(s). DimensionsL x W x H: 123 x 79 x 31 mm Lamp type: TC-L Lamp wattage: 1 x 18 W Circuit power: 18.5 W EEI: A1 BAT see more »

Lamp power: 16.0 W Current at 230 V, 50 Hz: 0.08 A λ at 230 V, 50 Hz: 0.96 « hide more

€ 133,84 € 109,71 ex. VAT

PCA 1x26-57 TC EXCEL one4all xitec II

Karta produktu PDF

Electrico24 code: 72439 | Tridonic code: 22185128 Weight per pc.: 0.163 kg Ambient temperature ta: -25 ... +65 °C tc point max.: 75 °C Packaging, carton: 10 pc(s). Packaging, pallet: 500 pc(s). DimensionsL x W x H: 123 x 79 x 31 mm Lamp type: TC-TEL Lamp wattage: 1 x 57 W Circuit power: 61.0 W EEI: A1 BAT see more »

Lamp power: 57.0 W Current at 230 V, 50 Hz: 0.24 A λ at 230 V, 50 Hz: 0.98 « hide more

€ 133,84 € 109,71 ex. VAT

PCA 1x28 TC-DD EXCEL one4all xitec II

Karta produktu PDF

Electrico24 code: 72440 | Tridonic code: 22185254 Weight per pc.: 0.147 kg Ambient temperature ta: -25 ... +65 °C tc point max.: 75 °C Packaging, carton: 10 pc(s). Packaging, pallet: 500 pc(s). DimensionsL x W x H: 123 x 79 x 31 mm Lamp type: TC-DD Lamp wattage: 1 x 28 W Circuit power: 27.5 W EEI: A1 BAT see more »

Lamp power: 26.5 W Current at 230 V, 50 Hz: 0.13 A λ at 230 V, 50 Hz: 0.98 « hide more

€ 133,84 € 109,71 ex. VAT

PCA 1x55 T5c EXCEL one4all xitec II

Karta produktu PDF

Electrico24 code: 72441 | Tridonic code: 22185132 Weight per pc.: 0.162 kg Ambient temperature ta: -25 ... +55 °C tc point max.: 70 °C Packaging, carton: 10 pc(s). Packaging, pallet: 500 pc(s). DimensionsL x W x H: 123 x 79 x 31 mm Lamp type: T5c Lamp wattage: 1 x 55 W Circuit power: 59.0 W EEI: A1 BAT see more »

Lamp power: 55.0 W Current at 230 V, 50 Hz: 0.26 A λ at 230 V, 50 Hz: 0.98 « hide more

€ 133,84 € 109,71 ex. VAT

PCA 2x11/13 TC EXCEL one4all xitec II

Karta produktu PDF

Electrico24 code: 72442 | Tridonic code: 22185135 Weight per pc.: 0.144 kg Ambient temperature ta: -25 ... +60 °C tc point max.: 70 °C Packaging, carton: 10 pc(s). Packaging, pallet: 500 pc(s). DimensionsL x W x H: 123 x 102 x 31 mm Lamp type: TC-TEL HE Lamp wattage: 2 x 17 W Circuit power: 37.5 W EEI: A1 BAT see more »

Lamp power: 35.0 W Current at 230 V, 50 Hz: 0.17 A λ at 230 V, 50 Hz: 0.98 « hide more

€ 133,84 € 109,71 ex. VAT

PCA 2x18 TC EXCEL one4all xitec II

Karta produktu PDF

Electrico24 code: 72443 | Tridonic code: 22185131 Weight per pc.: 0.201 kg Ambient temperature ta: -25 ... +70 °C tc point max.: 75 °C Packaging, carton: 10 pc(s). Packaging, pallet: 500 pc(s). DimensionsL x W x H: 123 x 102 x 31 mm Lamp type: TC-TEL Lamp wattage: 2 x 18 W Circuit power: 36.0 W EEI: A1 BAT see more »

Lamp power: 33.0 W Current at 230 V, 50 Hz: 0.17 A λ at 230 V, 50 Hz: 0.97 « hide more

€ 133,84 € 109,71 ex. VAT

PCA 2x18/24 TCL EXCEL one4all c xitec II

Karta produktu PDF

Electrico24 code: 72444 | Tridonic code: 22185257 Weight per pc.: 0.203 kg Ambient temperature ta: -25 ... +60 °C tc point max.: 75 °C Packaging, carton: 10 pc(s). Packaging, pallet: 500 pc(s). DimensionsL x W x H: 123 x 102 x 31 mm Lamp type: TC-L Lamp wattage: 2 x 24 W Circuit power: 48.0 W EEI: A1 BAT see more »

Lamp power: 22.0 W Current at 230 V, 50 Hz: 0.24 A λ at 230 V, 50 Hz: 0.98 « hide more

€ 133,84 € 109,71 ex. VAT

Description / FAQ Warranty

Tridonic - parametry
	CE
	EAC
	EL
	EMCVDE
	ENEC
	RCM
	RoHs
AC voltage range	198 – 264 V
DC voltage range	176 – 280 V (lamp start ≥ 198 V DC)
Mains frequency	0 / 50 / 60 Hz
Overvoltage protection	320 V AC, 1 h
Dimming range	3 – 100 %
Type of protection	IP20
Typ. power input on stand-by	< 0.2 W
Mains voltage range	220 – 240 V
Operating frequency	~ 40 – 130 kHz
Lamp start possible from	3 %
Protective hot restart	0.5 s for AC / 0.2 s for DC

Processor-controlled ballast with xitec II inside
Highest possible energy class CELMA EEI = A1 BAT (1)
Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION
Nominal life-time up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)
OEM-specific reserved memory areas
Extended DALI commands
5-year guarantee

Interfaces

DALI
DSI
switchDIM (with memory function + selectable dimming rate)
corridorFUNCTION (3 preprogrammed profiles + individually programmable)
Integrated SMART interface for function with all SMART Sensors and SMART plugs of the xitec II range

Functions

Intelligent Temperature Guard (overtemperature protection)
Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
Optimum filament heating in any dimmer setting
Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept)
Fade rates between 100 ms and 90 s (min. – max.)
corridorFUNCTION with ambient light control
Automatically triggered emergency lighting value in DC mode 15 %, can be set between 3 and 100 %
For emergency lighting systems as per EN 50172
Automatic start after replacement of defective lamps
Automatic shutdown if the lamp is faulty
Dimming possible in DC mode

⁽¹⁾ According to the EU directives on ecodesign requirements (EC) No. 245/2009 and (EC) No. 347/2010.
