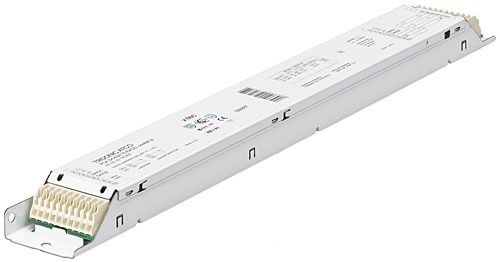

PCA T8 EXCEL one4all lp xitec, 3x18 W and 4x18 W Fluorescent Electronic Gear

Tridonic PCA T8 EXCEL one4all lp xitec, 3x18 W and 4x18 W

Price € 146,27 € 146,27 ex. VAT

See variants (2)

CE CE
EAC EAC
ENEC ENEC
RCM RCM
RoHs RoHs
AC voltage range 198 – 264 V
DC voltage range 176 – 280 V (lamp start ≥ 198 V DC)
Mains frequency 0 / 50 / 60 Hz
Overvoltage protection 320 V AC, 1 h
Type of protection IP20
Typ. power input on stand-by < 0.5 W
Mains voltage range 220 – 240 V
▼ see full specification ▼

Ask for product Description / FAQ / Warranty Data sheet

Score

rate product

Select your product from the 2

PCA 3x18 T8 EXCEL one4all lp xitec

Karta produktu PDF

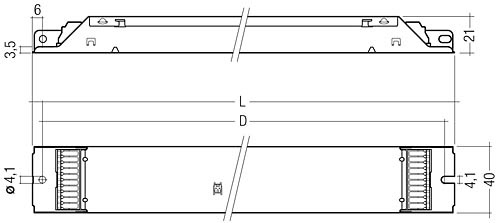

Electrico24 code: 72434 | Tridonic code: 22185247 Weight per pc.: 0.303 kg Ambient temperature ta: -25 ... +60 °C tc point max.: 75 °C Hole spacing D: 350 mm Packaging, carton: 20 pc(s). Packaging, pallet: 600 pc(s). DimensionsL x W x H: 360 x 40 x 21 mm Lamp type: T8 Lamp wattage: 3 x 18 W Circuit power: 51 W see more »

EEI: A1 BAT Lamp power: 48.5 W Current at 230 V, 50 Hz: 0.23 A λ at 230 V, 50 Hz: 0.97 « hide more

€ 178,45 € 146,27 ex. VAT

PCA 4x18 T8 EXCEL one4all lp xitec

Karta produktu PDF

Electrico24 code: 72435 | Tridonic code: 22185250 Weight per pc.: 0.338 kg Ambient temperature ta: -25 ... +60 °C tc point max.: 80 °C Hole spacing D: 350 mm Packaging, carton: 20 pc(s). Packaging, pallet: 600 pc(s). DimensionsL x W x H: 360 x 40 x 21 mm Lamp type: T8 Lamp wattage: 4 x 18 W Circuit power: 69 W see more »

EEI: A1 BAT Lamp power: 65.0 W Current at 230 V, 50 Hz: 0.31 A λ at 230 V, 50 Hz: 0.98 « hide more

€ 178,45 € 146,27 ex. VAT

Description / FAQ Warranty

Tridonic - parametry
	CE
	EAC
	ENEC
	RCM
	RoHs
AC voltage range	198 – 264 V
DC voltage range	176 – 280 V (lamp start ≥ 198 V DC)
Mains frequency	0 / 50 / 60 Hz
Overvoltage protection	320 V AC, 1 h
Type of protection	IP20
Typ. power input on stand-by	< 0.5 W
Mains voltage range	220 – 240 V
Operating frequency	~ 40 – 100 kHz
Lamp start possible from	5 % (3 lamps), 1 % (4 lamps)
Protective hot restart	0.5 s for AC / 0.2 s for DC
Dimming range, 3 lamps	5 – 100 %
Dimming range, 4 lamps	1 – 100 %

Processor-controlled ballast with xitec inside
Highest possible energy class CELMA EEI = A1 BAT (1)
Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION
OEM-specific reserved memory areas
Extended DALI commands
5-year guarantee

Interfaces

DALI
DSI
switchDIM (with memory function + selectable dimming rate)
corridorFUNCTION (individually programmable)

Functions

Intelligent Temperature Guard (overtemperature protection)
Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
Optimum filament heating in any dimmer setting
Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept)
Fade rates between 50 ms and 90 s (min. – max.)
Automatically triggered emergency lighting value in DC mode, can be set between 1 and 100 %
For emergency lighting systems as per EN 50172
Automatic start after replacement of defective lamps
Automatic shutdown if the lamp is faulty
Dimming possible in DC mode

⁽¹⁾ According to the EU directives on ecodesign requirements (EC) No. 245/2009 and (EC) No. 347/2010.
