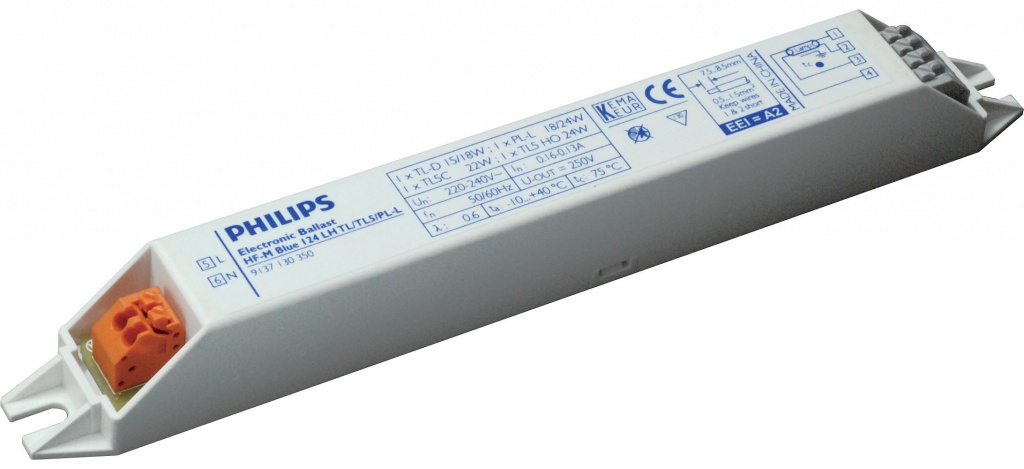

HF-Matchbox Blue is an affordable, reliable, compact, lightweight and high-frequency ballast for use with system wattages below 25 W in combination with TL mini, TL-D, TL5 and TL5c, PL-T/C, and PL-L/S lamps. The HF-M Blue range has a robust design, meets all relevant international safety and performance standards and has an energy efficiency index (CELMA EEI ) of A2.
Score
rate product
| Line Frequency | 50/60 Hz |
| T-case maximum | 75 (max) C |
| Full product code | 913700417966 |
| Full product name | HF-M BLUE 124 SH TL/TL5/PL-L 230-240V |
| Order code | 913700417966 |
| Order product name | HF-M BLUE 124 SH TL/TL5/PL-L 230-240V |
| Packing configuration | 50 |
| Pieces per pack | 1 |
| Bar code on outerbox - EAN3 | 8711500536396 |
| Bar code on pack - EAN1 | 8711500536389 |
| Packs per outerbox | 50 |
| Logistic code(s) - 12NC | 913700417966 |
| Net weight per piece | 0.040 kg |

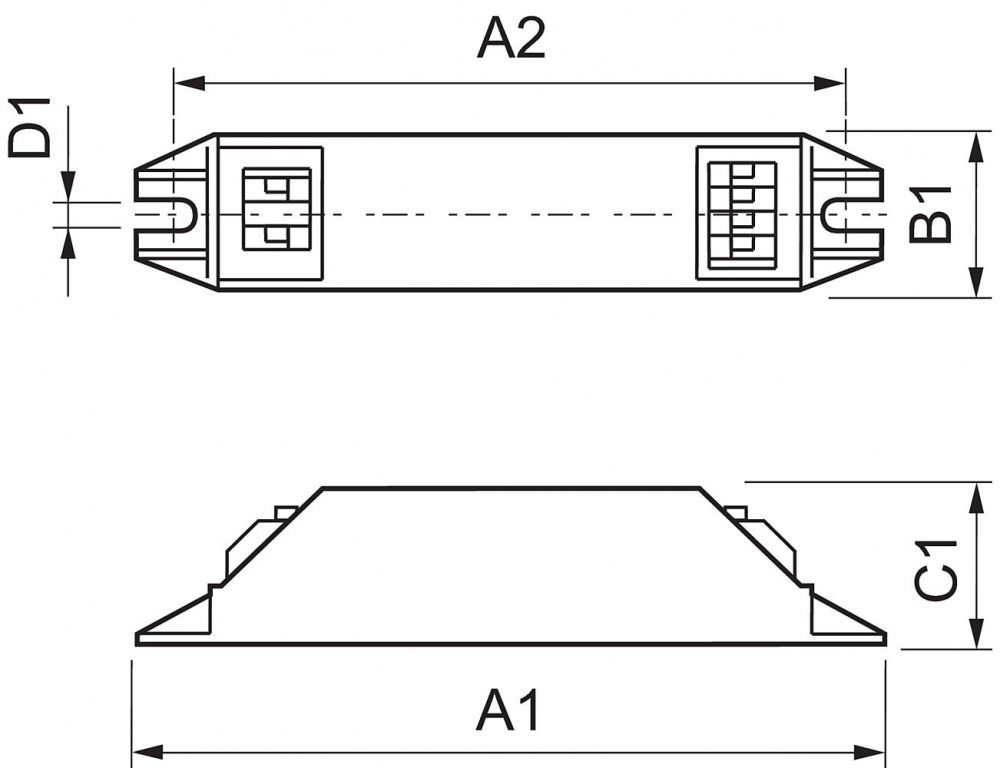

| Length A1 | 94.0 mm |
| CE marking | Yes |
| UL certificate | No |
| Height C1 | 22.0 mm |
| T-ambient | -10 (min), 40 (max) C |
| Width B1 | 40.0 mm |
| Lifetime 90% surv.@Tcaselife | 25000 hr |
| Fixing Hole Diameter D1 | 4.4 mm |
| Fixing Hole Distance Length A2 | 84.0 mm |
| ENEC certificate | No |
| Rated Lamptype | TL/TL5/PL-L |
| Line Voltage | 230-240 V |
| Rated Ballast-Lamp Power | 24 |
| Rated Number of Lamps | 1 piece |
| Automatic restart | Yes |
| Housing | SH |
| Mains voltage safety (AC) | -10%/+10% |
| Mains voltage performance (AC) | -8%/+6% |
| Power losses gear | 1.9-2.2 W |
| PowerFactor 100% output power | 0.64 - |
| Overvoltage protection 320Vac | 0.03 hr |
| Max ballast on MCB(16A type B) | 60 x |
| Conn.type input terminals | Insert |
| Conn.type output terminals | Insert |
| Max. cable length Hot Wires | 0.30 m |
| Striplength | 8.0-9.0 mm |
| Wcs Input terminals | 0.50-1.50 mm2 |
| Wcs Output terminals | 0.50-1.50 mm2 |
| F-marking | Yes |
| CB Certificate | Yes |
| Application code | mk1 |
| Battery voltage lamp ignition | 194-254 V |
| VDE certificate | Yes |
| Maximum ignition time | 0.5 (max) s |
| Color input terminals | Orange |
| Color output terminals | Grey |
| Max. cable length Device/Lamp | 1.50 m |
| Fixing Hole Distance Height C2 | 10.0 mm |
HF-Matchbox Blue is an affordable, reliable, compact, lightweight and high-frequency ballast for use with system wattages below 25 W in combination with TL mini, TL-D, TL5 and TL5c, PL-T/C, and PL-L/S lamps. The HF-M Blue range has a robust design, meets all relevant international safety and performance standards and has an energy efficiency index (CELMA EEI ) of A2.
Features
| Suitable for emergency DC operation between 190 and 254 V | |||
| Programmed, flicker-free, pre-heated start (
Applications
|
