PCA T5 ECO lp xitec II, 14 - 80 W Fluorescent Electronic Gear

Electrico24 code: 72449 | Tridonic code: 22185101

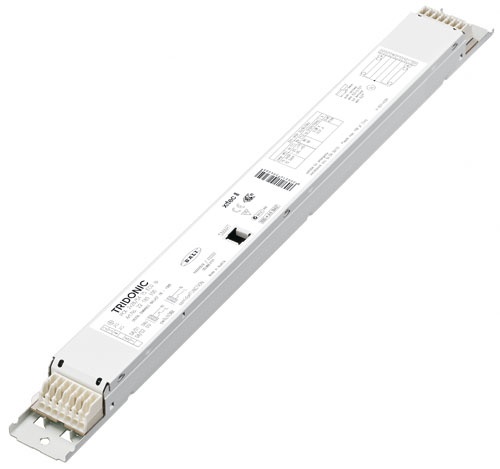

Tridonic PCA T5 ECO lp xitec II, 14 – 80 W

Price € 110,64 incl. VAT
€ 90,69 netto

Weight per pc. 0.233 kg
Ambient temperature ta -25 ... +65 °C
tc point max. 80 °C
Hole spacing D 350 mm
Packaging, carton 10 pc(s).
Packaging, pallet 760 pc(s).

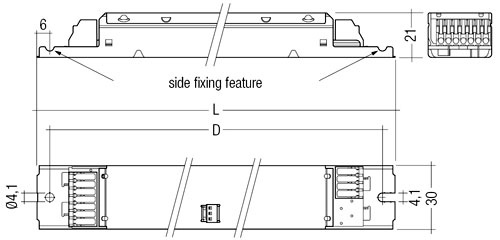

DimensionsL x W x H 360 x 30 x 21 mm
Lamp type TC-L
Lamp wattage 1 x 40 W
Circuit power 43.0 W
EEI A1 BAT
Lamp power 40 W
▼ see full specification ▼

Ask for product Description / FAQ / Warranty Data sheet

Score

rate product

1 variant available

PCA 1x21/39 T5 ECO lp xitec II

Karta produktu PDF

Electrico24 code: 72449 | Tridonic code: 22185101 Weight per pc.: 0.233 kg Ambient temperature ta: -25 ... +65 °C tc point max.: 80 °C Hole spacing D: 350 mm Packaging, carton: 10 pc(s). Packaging, pallet: 760 pc(s). DimensionsL x W x H: 360 x 30 x 21 mm Lamp type: TC-L Lamp wattage: 1 x 40 W Circuit power: 43.0 W see more »

EEI: A1 BAT Lamp power: 40 W Current at 230 V, 50 Hz: 0.20 A λ at 230 V, 50 Hz: 0.98 « hide more

€ 110,64 € 90,69 ex. VAT

Description / FAQ Warranty

Weight per pc.	0.233 kg
Ambient temperature ta	-25 ... +65 °C
tc point max.	80 °C
Hole spacing D	350 mm
Packaging, carton	10 pc(s).
Packaging, pallet	760 pc(s).
DimensionsL x W x H	360 x 30 x 21 mm
Lamp type	TC-L
Lamp wattage	1 x 40 W
Circuit power	43.0 W
EEI	A1 BAT
Lamp power	40 W
Current at 230 V, 50 Hz	0.20 A
λ at 230 V, 50 Hz	0.98
Tridonic - parametry
	CE
	EAC
	EL
	EMCVDE
	ENEC
	RCM
	RoHs
AC voltage range	198 – 264 V
DC voltage range	176 – 280 V (lamp start ≥ 198 V DC)
Mains frequency	0 / 50 / 60 Hz
Overvoltage protection	320 V AC, 1 h
Dimming range	1 – 100 %
Type of protection	IP20
Typ. power input on stand-by	< 0.2 W
Mains voltage range	220 – 240 V
Operating frequency	~ 40 – 130 kHz
Lamp start possible from	1 %
Protective hot restart	0.5 s for AC / 0.2 s for DC

Processor-controlled ballast with xitec II inside
Highest possible energy class CELMA EEI = A1 BAT (1)
Noise-free precise control via DALI or DSI signal, switchDIM or corridorFUNCTION
Nominal life-time up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)
Multilamp management
OEM-specific reserved memory areas
5-year guarantee

Interfaces

DALI
DSI
switchDIM (with memory function + selectable dimming rate)
corridorFUNCTION (3 preprogrammed profiles)
Integrated SMART interface for function with SMART Sensor 5D 19f and corridorFUNCTION plugs

Functions

Intelligent Temperature Guard (overtemperature protection)
Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
Optimum filament heating in any dimmer setting
Disconnection of filament heating from a dimming level of approx. 90 % for maximum energy efficiency (SMART-Heating concept)
corridorFUNCTION with ambient light control
Automatically triggered emergency lighting value in DC mode, 15 %
For emergency lighting systems as per EN 50172
Automatic start after replacement of defective lamps
Automatic shutdown if the lamp is faulty

⁽¹⁾ According to the EU directives on ecodesign requirements (EC) No. 245/2009 and (EC) No. 347/2010.
