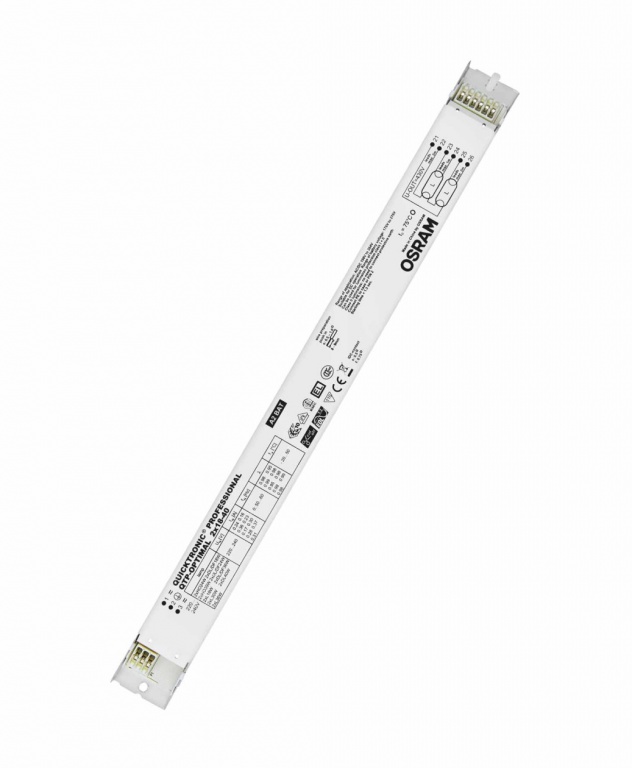

QUICKTRONIC PROFESSIONAL OPTIMAL Fluorescent Electronic Gear

From € 15,84 incl. VAT
From € 15,84 ex. VAT

See variants (4)

Nominal voltage 220240 V
Operating frequency 4050 kHz
Input voltage AC 198264 V
Mains frequency 5060 Hz
Input voltage DC 176276 V
Starting time 1.5 s
Width 30.0 mm
Height 21.0 mm
ECG lifetime 100000 h
Suitable for fixtures with prot. class I / II
End of lamp life safety shutdown EOL T.2
Approval marks approval EL / VDE / ENEC 10 / VDE-EMC
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 4

QTP-OPTIMAL 1X18...40

Karta produktu PDF

Electrico24 code: 57040 | Osram code: 4008321873743

€ 15,84 € 15,84 ex. VAT

QTP-OPTIMAL 1X54...58

Karta produktu PDF

Electrico24 code: 55463 | Osram code: 4008321873729 Length: 280.0 mm Max. no. of ECGs on circuit breaker 10 A: 12 Max. no. of ECGs on circuit breaker 16 A: 19 Mounting hole spacing, length: 270.0 mm Product weight: 180.00 g Standards: Acc. to IEC 61347-2-3 / App. J/Acc. to EN 55015:2006 + A1:2007 + A2:2009/Acc. to IEC 61000-3-2/Acc. to IEC 61547

€ 15,84 € 15,84 ex. VAT

QTP-OPTIMAL 2X18...40

Karta produktu PDF

Electrico24 code: 55464 | Osram code: 4008321873767

€ 19,58 € 19,58 ex. VAT

QTP-OPTIMAL 2X54...58

Karta produktu PDF

Electrico24 code: 55465 | Osram code: 4008321880253 Length: 360.0 mm Inrush current: 57 A Max. no. of ECGs on circuit breaker 10 A: 8 Max. no. of ECGs on circuit breaker 16 A: 13 Mounting hole spacing, length: 350.0 mm Product weight: 239.90 g Standards: Acc. to IEC 61347-2-3 / App. J/Acc. to EN 55015:2006 + A1:2007 + A2:2009/Acc. to EN 61000-3-2/Acc. to EN 61547

€ 19,58 € 19,58 ex. VAT

Description / FAQ Warranty

Electrical data
Nominal voltage	220240 V
Operating frequency	4050 kHz
Input voltage AC	198264 V
Mains frequency	5060 Hz
Input voltage DC	176276 V
Light technical data
Starting time	1.5 s
Dimensions & weight
Width	30.0 mm
Height	21.0 mm
Lifespan
ECG lifetime	100000 h
Capabilities
Suitable for fixtures with prot. class	I / II
End of lamp life safety shutdown	EOL T.2
Certificates & standards
Approval marks approval	EL / VDE / ENEC 10 / VDE-EMC
EEI Energy Label	A2 BAT
Protection class	I/II
Temperatures
Ambient temperature range	-20+50 °C

Product benefits

Long lamp life
No adverse effect from frequent on/off switching
Automatic restart after lamp replacement
Perfect lamp start for applications with motion sensors
VDE/VDE EMC certified system
Very high energy efficiency due to cut-off technology

Areas of application

Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
Industry
Open-plan offices, corridors and storage rooms
Public buildings
Sports halls and factories
Strip lighting
Suitable for emergency lighting (DC operation)
Modernization of existing systems

Product features

Supply voltage: 220…240 V
Line voltage: 198…264 V
Line frequency: 0 Hz, 50 Hz…60 Hz
Lamp start with optimum filament preheating
Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
Energy Efficiency Index EEI: A2 BAT
Automatic shutdown of defective lamps and at end of life (EoL T.2)
Safety: to EN 61347-2-3
Lamp operation: to EN 60929
