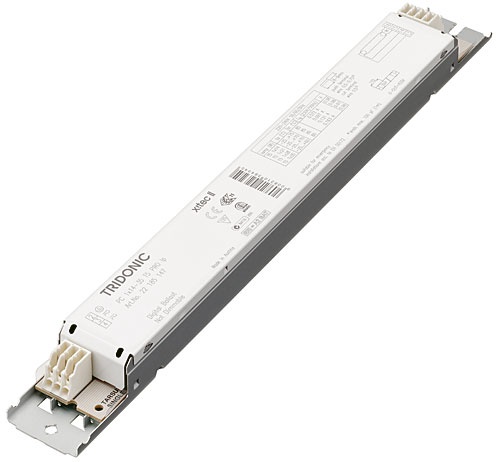

PC T5 PRO lp, PC TCL PRO lp, 14 - 80 W Fluorescent Electronic Gear

Tridonic PC T5 PRO lp, PC TCL PRO lp, 14 – 80 W

From € 14,99 incl. VAT
From € 14,99 ex. VAT

See variants (4)

CCC CCC
CE CE
EAC EAC
EL EL
EMCVDE EMCVDE
ENEC ENEC
GOST GOST
RCM RCM
RoHs RoHs
AC voltage range 198 – 264 V
DC voltage range 176 – 280 V (lamp start ≥ 198 V DC)
Mains frequency 0 / 50 / 60 Hz
▼ see full specification ▼

Ask for product Description / FAQ / Warranty Data sheet

Score

rate product

Select your product from the 4

PC 1x80 T5 PRO lp

Karta produktu PDF

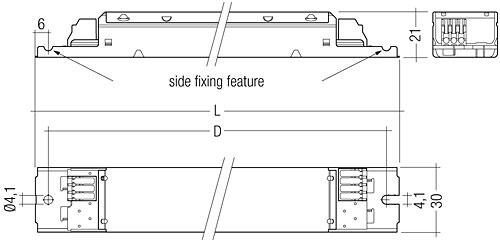

Electrico24 code: 72299 | Tridonic code: 22185209 Weight per pc.: 0.198 kg tc point max.: 80 °C Hole spacing D: 270 mm Packaging, carton: 10 pc(s). DimensionsL x W x H: 280 x 30 x 21 mm Packaging, low volume: 960 pc(s). Lamp type: TC-L Lamp wattage: 1 x 55 W Circuit power: 58.9 W EEI: A2 BAT see more »

Lamp power: 55.0 W Current at 50 Hz: 0.273 A λ at 50 Hz: 0.99 Ambient temperature ta: -25 ... +65 °C tc/ta for ≥ 50.000 h: 75/60 °C « hide more

€ 18,29 € 14,99 ex. VAT

PC 1x54 T5 PRO lp

Karta produktu PDF

Electrico24 code: 72298 | Tridonic code: 22185155 Weight per pc.: 0.170 kg tc point max.: 80 °C Hole spacing D: 270 mm Packaging, carton: 10 pc(s). DimensionsL x W x H: 280 x 30 x 21 mm Packaging, low volume: 960 pc(s). Lamp type: T5 Lamp wattage: 1 x 54 W Circuit power: 57.0 W EEI: A2 BAT see more »

Lamp power: 54.1 W Current at 50 Hz: 0.254 A λ at 50 Hz: 0.98 Ambient temperature ta: -25 ... +60 °C tc/ta for ≥ 50.000 h: 70/50 °C « hide more

€ 22,31 € 18,28 ex. VAT

PC 1x49 T5 PRO lp

Karta produktu PDF

Electrico24 code: 72297 | Tridonic code: 22185153 Weight per pc.: 0.170 kg tc point max.: 80 °C Hole spacing D: 270 mm Packaging, carton: 10 pc(s). DimensionsL x W x H: 280 x 30 x 21 mm Packaging, low volume: 960 pc(s). Lamp type: T5 Lamp wattage: 1 x 49 W Circuit power: 52.2 W EEI: A2 BAT see more »

Lamp power: 49.2 W Current at 50 Hz: 0.235 A λ at 50 Hz: 0.98 Ambient temperature ta: -25 ... +60 °C tc/ta for ≥ 50.000 h: 75/55 °C « hide more

€ 39,26 € 32,18 ex. VAT

PC 2x80 T5 PRO lp

Karta produktu PDF

Electrico24 code: 72306 | Tridonic code: 22185210 Weight per pc.: 0.335 kg tc point max.: 85 °C Hole spacing D: 415 mm Packaging, carton: 10 pc(s). DimensionsL x W x H: 425 x 30 x 21 mm Packaging, low volume: 640 pc(s). Lamp type: T5 Lamp wattage: 2 x 80 W Circuit power: 171.4 W EEI: A2 BAT see more »

Lamp power: 159.6 W Current at 50 Hz: 0.787 A λ at 50 Hz: 0.99 Ambient temperature ta: -25 ... +55 °C tc/ta for ≥ 50.000 h: 80/50 °C « hide more

€ 45,51 € 37,30 ex. VAT

Description / FAQ Warranty

Tridonic - parametry
	CCC
	CE
	EAC
	EL
	EMCVDE
	ENEC
	GOST
	RCM
	RoHs
AC voltage range	198 – 264 V
DC voltage range	176 – 280 V (lamp start ≥ 198 V DC)
Mains frequency	0 / 50 / 60 Hz
Overvoltage protection	320 V AC, 1 h
Type of protection	IP20
Mains voltage range	220 – 240 V
Defined warm start	≤ 1.5 s
Operating frequency	≥ 39.5 kHz

Highest CELMA Energy Efficiency Index A2 BAT
Nominal life-time up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.1 % per 1,000 h)
Large temperature range (for values see table)
Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
Precise lamp operation using adjustment of lamp parameters
Advanced SMART-Heating for min. 50,000 starts without replacement of lamps
Constant luminous flux irrespective of fluctuations in mains voltage
Designed for THD < 10 %
For luminaires of protection class I and protection class II
Automatic start after replacement of defective lamps
Safety shutdown of defective lamps and at end of lamp life (EOL 2)
Insulation Displacement Connection (IDC) terminal for rapid automatic or manual wiring
For emergency lighting systems as per EN 50172
