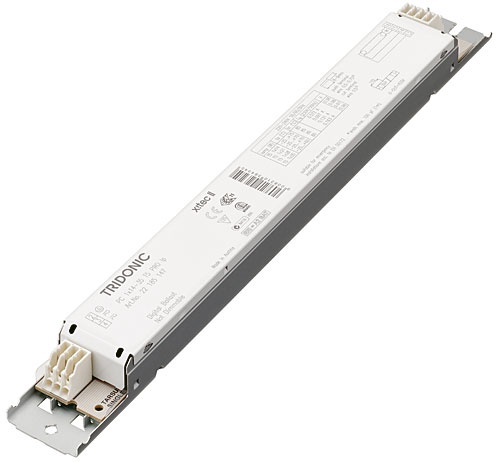

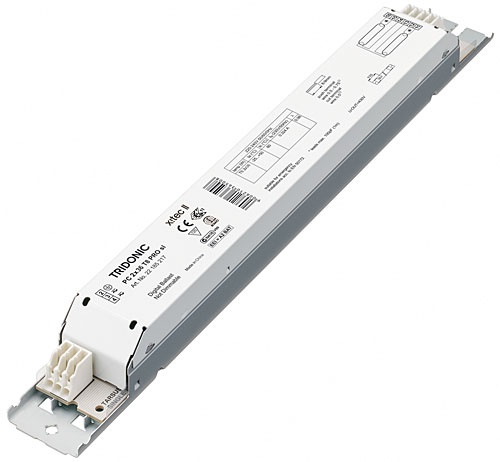

PC T8 PRO lp, PC T8 PRO sl, 18 - 58 W Fluorescent Electronic Gear

Tridonic PC T8 PRO lp, PC T8 PRO sl, 18 – 58 W

From € 19,38 incl. VAT
From € 19,38 ex. VAT

See variants (4)

CCC CCC
CE CE
EL EL
EMCVDE EMCVDE
ENEC ENEC
GOST GOST
RCM RCM
RoHs RoHs
AC voltage range 198 – 264 V
DC voltage range 176 – 280 V (lamp start ≥ 198 V DC)
Mains frequency 0 / 50 / 60 Hz
Overvoltage protection 320 V AC, 1 h
▼ see full specification ▼

Ask for product Description / FAQ / Warranty Data sheet

Score

rate product

Select your product from the 4

PC 1x18 T8 PRO lp

Karta produktu PDF

Electrico24 code: 72309 | Tridonic code: 22185213 Weight per pc.: 0.146 kg tc point max.: 80 °C Hole spacing D: 220 mm Packaging, carton: 50 pc(s). DimensionsL x W x H: 230 x 30 x 21 mm Packaging, low volume: 1,050 pc(s). Lamp type: T8 Lamp wattage: 1 x 18 W Circuit power: 18.3 W EEI: A2 BAT see more »

Lamp power: 16.0 W Current at 50 Hz: 0.081 A λ at 50 Hz: 0.98 Ambient temperature ta: -25 ... +70 °C tc/ta for ≥ 50.000 h: 75/65 °C Figure: 1 Packaging, high volume: 3,150 pc(s). « hide more

€ 23,65 € 19,38 ex. VAT

PC 1x58 T8 PRO lp

Karta produktu PDF

Electrico24 code: 72311 | Tridonic code: 22185215 Weight per pc.: 0.143 kg tc point max.: 70 °C Hole spacing D: 220 mm Packaging, carton: 50 pc(s). DimensionsL x W x H: 230 x 30 x 21 mm Packaging, low volume: 1,050 pc(s). Lamp type: TC-L Lamp wattage: 1 x 55 W Circuit power: 56.0 W EEI: A2 BAT see more »

Lamp power: 51.5 W Current at 50 Hz: 0.255 A λ at 50 Hz: 0.99 Ambient temperature ta: -25 ... +55 °C tc/ta for ≥ 50.000 h: 65/50 °C Figure: 1 Packaging, high volume: 3,150 pc(s). « hide more

€ 23,65 € 19,38 ex. VAT

PC 2x18 T8 PRO lp

Karta produktu PDF

Electrico24 code: 72312 | Tridonic code: 22185216 Weight per pc.: 0.170 kg tc point max.: 80 °C Hole spacing D: 270 mm Packaging, carton: 50 pc(s). DimensionsL x W x H: 280 x 30 x 21 mm Packaging, low volume: 900 pc(s). Lamp type: T8 Lamp wattage: 2 x 18 W Circuit power: 35.3 W EEI: A2 BAT see more »

Lamp power: 32.0 W Current at 50 Hz: 0.159 A λ at 50 Hz: 0.99 Ambient temperature ta: -25 ... +70 °C tc/ta for ≥ 50.000 h: 75/65 °C Figure: 1 Packaging, high volume: 2,700 pc(s). « hide more

€ 26,32 € 21,58 ex. VAT

PC 3/4x18 T8 PRO lp

Karta produktu PDF

Electrico24 code: 72315 | Tridonic code: 22185219 Weight per pc.: 0.192 kg tc point max.: 80 °C Hole spacing D: 270 mm Packaging, carton: 10 pc(s). DimensionsL x W x H: 280 x 30 x 28 mm Packaging, low volume: 960 pc(s). Lamp type: T8 Lamp wattage: 4 x 18 W Circuit power: 69.2 W EEI: A2 BAT see more »

Lamp power: 64.0 W Current at 50 Hz: 0.321 A λ at 50 Hz: 0.99 Ambient temperature ta: -25 ... +65 °C tc/ta for ≥ 50.000 h: 75/60 °C Figure: 1 Packaging, high volume: – « hide more

€ 29,00 € 23,77 ex. VAT

Description / FAQ Warranty

Tridonic - parametry
	CCC
	CE
	EL
	EMCVDE
	ENEC
	GOST
	RCM
	RoHs
AC voltage range	198 – 264 V
DC voltage range	176 – 280 V (lamp start ≥ 198 V DC)
Mains frequency	0 / 50 / 60 Hz
Overvoltage protection	320 V AC, 1 h
Type of protection	IP20
Mains voltage range	220 – 240 V
Defined warm start	≤ 1.5 s
Operating frequency	≥ 39.5 kHz

Highest possible energy class CELMA EEI = A2 BAT
Nominal life-time up to 100,000 h (at ta 50 °C with a failure rate ≤ 0.1 % per 1,000 h)
Large temperature range (for values see table)
Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
Precise lamp operation using adjustment of lamp parameters
Advanced SMART-Heating for min. 50,000 starts without replacement of lamps
Constant luminous flux irrespective of fluctuations in mains voltage
Designed for THD < 10 %
For luminaires of protection class I and protection class II
Automatic start after replacement of defective lamps
Safety shutdown of defective lamps and at end of lamp life (EOL 2)
Insulation Displacement Connection (IDC) terminal for rapid automatic or manual wiring
For emergency lighting systems as per EN 50172
