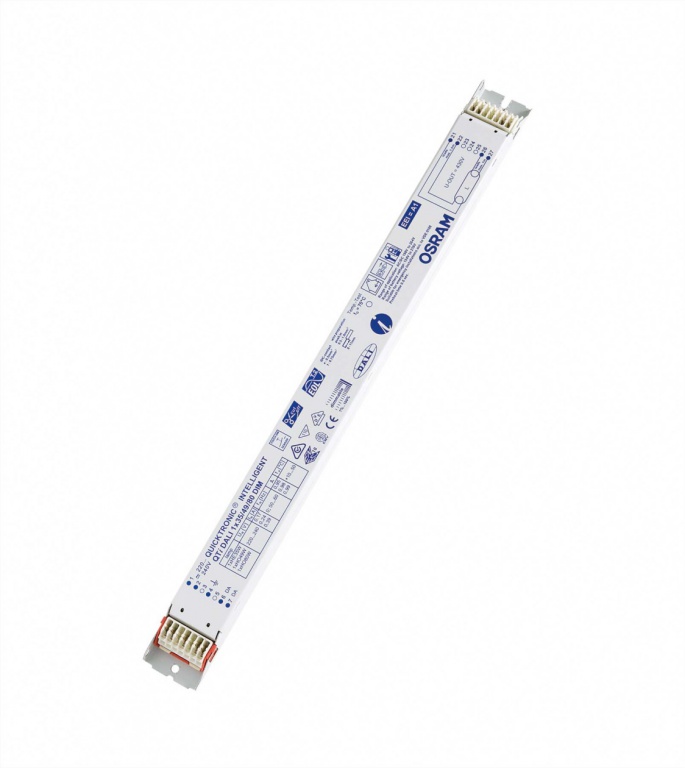

QUICKTRONIC INTELLIGENT DIM T5 Fluorescent Electronic Gear

From € 61,92 incl. VAT
From € 61,92 ex. VAT

See variants (10)

Nominal voltage 220240 V
Input voltage DC 154276 V
Starting time 0.6 s
Height 21.0 mm
Wire preparation length, input side 8.09.0 mm
Wire preparation length, output side 8.09.0 mm
ECG lifetime 100000 h
Dimmable Yes
Suitable for fixtures with prot. class I
Dimming interface 110 V
Dimming range 1100 %
End of lamp life safety shutdown EOL T.2
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 10

QTi 1X14/24 DIM

Karta produktu PDF

Electrico24 code: 57029 | Osram code: 4050300870922 Nominal voltage: 220240 V Operating frequency: 53120 kHz Starting time: 0.6 s Length: 360.0 mm Dimmable: Yes Mains frequency: 50/60 Hz Inrush current: 24 A Max. no. of ECGs on circuit breaker 10 A: 17 Max. no. of ECGs on circuit breaker 16 A: 28 Width: 30.0 mm see more »

Height: 21.0 mm Mounting hole spacing, length: 350.0 mm Product weight: 274.00 g Wire preparation length, input side: 8.09.0 mm Ambient temperature range: +10+50 °C ECG lifetime: 100000 h Suitable for fixtures with prot. class: I Approval marks approval: VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Type of protection: IP20 Dimming interface: 110 V Dimming range: 1100 % Input voltage DC: 154276 V EEI Energy Label: A1 BAT End of lamp life safety shutdown: EOL T.2 Wire preparation length, output side: 8.09.0 mm « hide more

€ 61,92 € 61,92 ex. VAT

QTi 1X21/39/220...240 DIM

Karta produktu PDF

Electrico24 code: 56482 | Osram code: 4050300870564 Operating frequency: 44120 kHz Length: 360.0 mm Mains frequency: 50/60 Hz Inrush current: 24 A Max. no. of ECGs on circuit breaker 10 A: 17 Max. no. of ECGs on circuit breaker 16 A: 28 Width: 30.0 mm Mounting hole spacing, length: 350.0 mm Product weight: 276.00 g Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Type of protection: IP20

€ 61,92 € 61,92 ex. VAT

QTi 1X28/54/220...240 DIM

Karta produktu PDF

Electrico24 code: 56483 | Osram code: 4050300870588 Operating frequency: 44120 kHz Length: 360.0 mm Mains frequency: 50/60 Hz Inrush current: 24 A Max. no. of ECGs on circuit breaker 10 A: 17 Max. no. of ECGs on circuit breaker 16 A: 28 Width: 30.0 mm Mounting hole spacing, length: 350.0 mm Product weight: 273.00 g Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Type of protection: IP20

€ 61,92 € 61,92 ex. VAT

QTi 1X35/49/80/220...240 DIM

Karta produktu PDF

Electrico24 code: 56486 | Osram code: 4050300870540 Operating frequency: 44120 kHz Length: 360.0 mm Mains frequency: 50/60 Hz Inrush current: 28 A Max. no. of ECGs on circuit breaker 10 A: 12 Max. no. of ECGs on circuit breaker 16 A: 19 Width: 30.0 mm Mounting hole spacing, length: 350.0 mm Product weight: 289.00 g Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Type of protection: IP20

€ 61,92 € 61,92 ex. VAT

QTi 2X14/24 DIM

Karta produktu PDF

Electrico24 code: 56489 | Osram code: 4050300870946 Operating frequency: 53120 kHz Length: 423.0 mm Mains frequency: 5060 Hz Inrush current: 35 A Max. no. of ECGs on circuit breaker 10 A: 12 Max. no. of ECGs on circuit breaker 16 A: 19 Width: 30.0 mm Mounting hole spacing, length: 415.0 mm Product weight: 370.00 g Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Type of protection: IP20

€ 68,19 € 68,19 ex. VAT

QTi 2X21/39/220...240

Karta produktu PDF

Electrico24 code: 56492 | Osram code: 4050300870694 Operating frequency: 44120 kHz Length: 423.0 mm Mains frequency: 5060 Hz Inrush current: 45 A Max. no. of ECGs on circuit breaker 10 A: 8 Max. no. of ECGs on circuit breaker 16 A: 13 Width: 30.0 mm Mounting hole spacing, length: 415.0 mm Product weight: 370.00 g Standards: Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547 Type of protection: IP20 Protection class: I

€ 68,19 € 68,19 ex. VAT

QTi 2X28/54 DIM

Karta produktu PDF

Electrico24 code: 56493 | Osram code: 4050300870717 Operating frequency: 44120 kHz Length: 423.0 mm Mains frequency: 5060 Hz Inrush current: 45 A Max. no. of ECGs on circuit breaker 10 A: 8 Max. no. of ECGs on circuit breaker 16 A: 13 Width: 30.0 mm Mounting hole spacing, length: 415.0 mm Product weight: 373.00 g Standards: Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547 Type of protection: IP20 Protection class: I/II

€ 68,19 € 68,19 ex. VAT

QTi 2X35/49/220...240 DIM

Karta produktu PDF

Electrico24 code: 56495 | Osram code: 4050300870670 Operating frequency: 44120 kHz Length: 423.0 mm Mains frequency: 5060 Hz Inrush current: 45 A Max. no. of ECGs on circuit breaker 10 A: 8 Max. no. of ECGs on circuit breaker 16 A: 13 Width: 30.0 mm Mounting hole spacing, length: 415.0 mm Product weight: 370.00 g Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Type of protection: IP20

€ 68,19 € 68,19 ex. VAT

QUICKTRONIC INTELLIGENT DIM T5 4X14/24/220...240 DIM

Karta produktu PDF

Electrico24 code: 56502 | Osram code: 4008321069993 Operating frequency: 40100 kHz Length: 360.0 mm Mains frequency: 5060 Hz Inrush current: 45 A Max. no. of ECGs on circuit breaker 10 A: 8 Max. no. of ECGs on circuit breaker 16 A: 13 Width: 40.0 mm Mounting hole spacing, length: 350.0 mm Product weight: 397.00 g Standards: acc. to EN 61347-2-3/acc. to EN 60929/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547

€ 73,43 € 73,43 ex. VAT

QTi 2X35/49/80/220...240 DIM

Karta produktu PDF

Electrico24 code: 56496 | Osram code: 4050300870984 Operating frequency: 44120 kHz Length: 423.0 mm Mains frequency: 5060 Hz Inrush current: 60 A Max. no. of ECGs on circuit breaker 10 A: 5 Max. no. of ECGs on circuit breaker 16 A: 9 Width: 30.0 mm Mounting hole spacing, length: 415.0 mm Product weight: 370.00 g Standards: Acc. to EN 61347-2-3/Acc. to EN 60929/Acc. to EN 55015:2006 + A1:2007/Acc. to EN 61000-3-2/Acc. to EN 61547 Type of protection: IP20 Protection class: I

€ 90,31 € 90,31 ex. VAT

Description / FAQ Warranty

Electrical data
Nominal voltage	220240 V
Input voltage DC	154276 V
Light technical data
Starting time	0.6 s

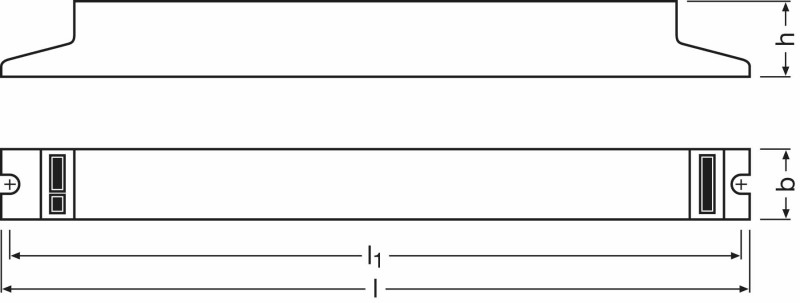

Dimensions & weight
Height	21.0 mm
Wire preparation length, input side	8.09.0 mm
Wire preparation length, output side	8.09.0 mm
Lifespan
ECG lifetime	100000 h
Capabilities
Dimmable	Yes
Suitable for fixtures with prot. class	I
Dimming interface	110 V
Dimming range	1100 %
End of lamp life safety shutdown	EOL T.2
Certificates & standards
Approval marks approval	VDE / VDE-EMC / ENEC 10 / EL / GOST / RCM / CCC
EEI Energy Label	A1 BAT
Temperatures
Ambient temperature range	+10+50 °C

Product benefits

Same luminous flux with direct and alternating current
Perfect lamp start for applications with motion sensors
Dimming of amalgam lamps without flickering or reduced lifespan
Very high efficiency thanks to cut-off technology
Automatic restart after lamp replacement
ECGs comply with MINERGIE standard due to very low standby consumption
Configurable emergency power characteristics

Areas of application

Suitable for emergency installations
Industry
Open-plan offices, corridors and storage rooms
Public buildings
Suitable for luminaires of protection class I

Product features

Control via 1…10 V interface
Supply voltage: 220…240 V
Line frequency: 0 Hz | 50 Hz | 60 Hz
Line voltage: 198…264 V
Dimming range: 1…100 % luminous flux
Lamp start: within 0.6 s
Lifetime: > 100,000 h (for T = 65 °C at Tc)
Automatic shutdown of defective lamps and at end of life (EoL T.2)
Energy Efficiency Index EEI: A1 BAT
Overtemperature protection: Thermal management at high tc temperatures
Safety: to EN 61347-2-3
