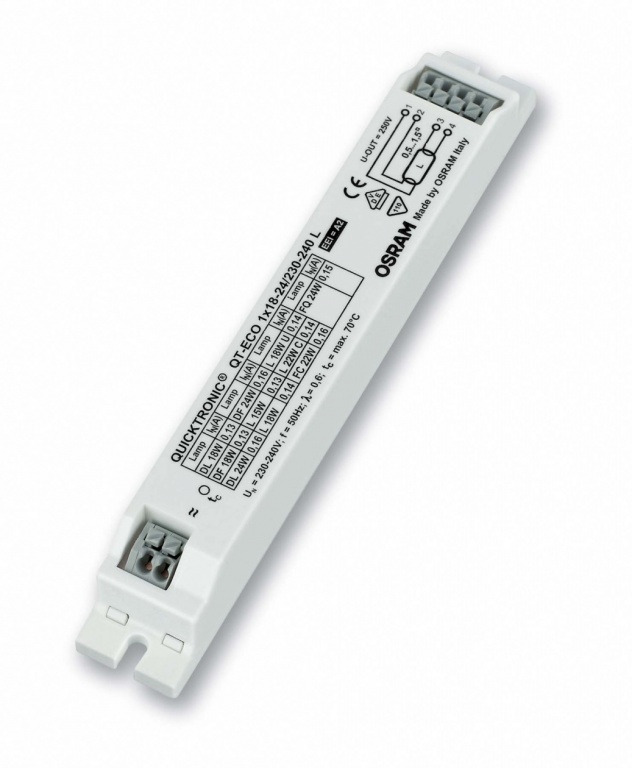

QUICKTRONIC ECONOMIC ECG for FL 7mm and CFL Fluorescent Electronic Gear

From € 12,10 incl. VAT
From € 12,10 ex. VAT

See variants (5)

Nominal voltage 220240 V
Input voltage DC 176254 V
End of lamp life safety shutdown EOL T.2
EEI Energy Label A3
Ambient temperature range -15+50 °C
▼ see full specification ▼

Ask for product Description / FAQ / Warranty

Score

rate product

Select your product from the 5

QT-ECO 1X26/220...240 S

Karta produktu PDF

Electrico24 code: 56467 | Osram code: 4008321065971 Operating frequency: 3545 kHz Starting time: 1.5 s Length: 80.0 mm Mains frequency: 50 Hz Inrush current: 14 A Max. no. of ECGs on circuit breaker 10 A: 30 Max. no. of ECGs on circuit breaker 16 A: 50 Width: 40.0 mm Height: 22.0 mm Mounting hole spacing, length: 72.075.0 mm see more »

Product weight: 50.00 g Suitable for fixtures with prot. class: I / II Approval marks approval: VDE Standards: acc. to EN 61347-2-3/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Type of protection: IP20 « hide more

€ 12,10 € 12,10 ex. VAT

QT-ECO 1X4-16/220...240 S

Karta produktu PDF

Electrico24 code: 56468 | Osram code: 4050300638584 Operating frequency: 40 kHz Starting time: 1.0 s Length: 80.0 mm Mains frequency: 50 Hz Inrush current: 10 A Max. no. of ECGs on circuit breaker 10 A: 68 Max. no. of ECGs on circuit breaker 16 A: 112 Width: 40.0 mm Height: 22.0 mm Mounting hole spacing, length: 72.075.0 mm see more »

€ 12,10 € 12,10 ex. VAT

QT-ECO 21/220...240 S

Karta produktu PDF

Electrico24 code: 56464 | Osram code: 4050300794907 Operating frequency: 3545 kHz Starting time: 1.5 s Length: 80.0 mm Mains frequency: 50 Hz Inrush current: 13 A Max. no. of ECGs on circuit breaker 10 A: 36 Max. no. of ECGs on circuit breaker 16 A: 59 Width: 40.0 mm Height: 22.0 mm Mounting hole spacing, length: 72.075.0 mm see more »

€ 12,10 € 12,10 ex. VAT

QT-ECO 24/220...240 S

Karta produktu PDF

Electrico24 code: 56466 | Osram code: 4050300638560 Operating frequency: 40 kHz Starting time: 1.5 s Length: 80.0 mm Mains frequency: 50 Hz Inrush current: 13 A Max. no. of ECGs on circuit breaker 10 A: 36 Max. no. of ECGs on circuit breaker 16 A: 59 Width: 40.0 mm Height: 22.0 mm Mounting hole spacing, length: 72.075.0 mm see more »

Product weight: 50.00 g Suitable for fixtures with prot. class: I / II Approval marks approval: VDE / VDE-EMC Standards: acc. to EN 61347-2-3/acc. to EN 55015:2006 + A1:2007/acc. to IEC 61000-3-2/acc. to EN 61547 Type of protection: IP20 « hide more

€ 12,10 € 12,10 ex. VAT

QUICKTRONIC ECONOMIC 11/220...240 S

Karta produktu PDF

Electrico24 code: 56469 | Osram code: 4050300821504 Operating frequency: 3045 kHz Starting time: 2.0 s Length: 80.0 mm Mains frequency: 50 Hz Inrush current: 12 A Max. no. of ECGs on circuit breaker 10 A: 51 Max. no. of ECGs on circuit breaker 16 A: 84 Width: 40.0 mm Height: 22.0 mm Mounting hole spacing, length: 72.075.0 mm see more »

Product weight: 52.00 g Suitable for fixtures with prot. class: I / II Approval marks approval: VDE Standards: acc. to EN 61347-2-3/acc. to EN 55015:2006 + A1:2007/acc. to EN 61000-3-2/acc. to EN 61547 Type of protection: IP20 « hide more

€ 17,86 € 17,86 ex. VAT

Description / FAQ Warranty

Electrical data
Nominal voltage	220240 V
Input voltage DC	176254 V
Capabilities
End of lamp life safety shutdown	EOL T.2
Certificates & standards
EEI Energy Label	A3
Temperatures
Ambient temperature range	-15+50 °C

Product benefits

Compact housing
Automatic restart after lamp replacement

Areas of application

Public buildings

Product features

Supply voltage: 220…240 V
Line voltage: 198…264 V
Line frequency: 50 Hz | 60 Hz
Energy Efficiency Index EEI: A2
Automatic shutdown of defective lamps and at end of life (EoL)
