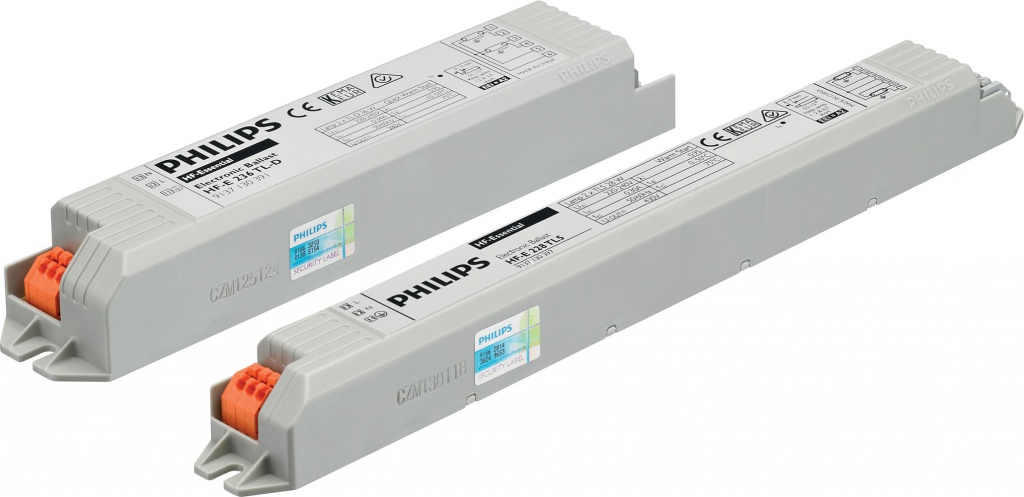

Essentially smart and reliableHF-Essential is the most cost-effective, slim and affordable ballast to reliably operate a fluorescent lamp. It is also the ideal entry-level product for EM system users who want to enjoy the benefits offered by electronic ballasts. The cost-saving and reliable HF-Essential has an energy efficiency class A2, and its robust design meets all relevant international safety and performance standards. HF- Essential is intended for use with indoor lighting fixtures such as recessed luminaires, which are largely used in office, industrial, hotel, restaurant and other applications.
Score
rate product
| Line Frequency | 50/60 Hz |
| T-case maximum | 75 (max) C |
| Full product code | 913713039266 |
| Full product name | HF-E 418 TL-D 220-240V 50/60Hz |
| Order code | 913713039266 |
| Order product name | HF-E 418 TL-D 220-240V 50/60Hz |
| Packing configuration | 20 |
| Pieces per pack | 1 |
| Bar code on outerbox - EAN3 | 8718291668787 |
| Bar code on pack - EAN1 | 8718291668770 |
| Packs per outerbox | 20 |
| Logistic code(s) - 12NC | 913713039266 |
| Net weight per piece | 0.100 kg |
| Length A1 | 211.0 mm |
| CE marking | Yes |
| Height C1 | 30.0 mm |
| T-ambient | -10 (min), 50 (max) C |
| Width B1 | 40.0 mm |
| Lifetime 90% surv.@Tcaselife | 30000 hr |
| Fixing Hole Diameter D1 | 4.2 mm |
| Fixing Hole Distance Length A2 | 197.0 mm |
| ENEC certificate | No |
| Inrush current Peak | 20 (max) A |
| Earth leakage current | 0.5 (max) mA |
| Inrush current Width | 0.37 ms |
| T-storage | -20 (min), 50 (max) C |
| Rated Lamptype | TL-D |
| Line Voltage | 220-240 V |
| Rated Ballast-Lamp Power | 18 |
| Rated Number of Lamps | 4 piece |
| T-case life | 75 C |
| Approval marks | CE / KEMA / C-Tick / CB / RoHS |
| Automatic restart | Yes |
| Energy Efficiency Index | A2 |
| Housing | L 211x40x30 |
| Mains voltage safety (AC) | 198...264V |
| Operating frequency * | 51 kHz |
| Mains voltage performance (AC) | 184...253V |
| Ballast Lumen Factor | 1.02 - |
| Power losses gear | 12 W |
| PowerFactor 100% output power | 0.95 - |
| Overvoltage protection 320Vac | 48 hr |
| Overvoltage protection 350Vac | 2 hr |
| Crestfactor | 1.8 - |
| Max ballast on MCB(16A type B) | 20 x |
| Cable-Cap outputwires mutual | 150 (max) pF |
| Hum and Noise level | < 30 dB(A) |
| Conn.type input terminals | Insert |
| Conn.type output terminals | Insert |
| Max. cable length Hot Wires | 0.75 m |
| Striplength | 8.0-9.0 mm |
| Dual fixture Master/Slave | Not applicable [Master/Slave oper. not applicable] |
| Wcs Input terminals | 0.50-1.50 mm2 |
| Wcs Output terminals | 0.50-1.50 mm2 |
| Cable-Cap cold out-wires-earth | 150 (max) pF |
| Cable-Cap hot out-wires-earth | 150 (max) pF |
| Rated Lamp Power on TL-D | 18 |
| Lamp Power on TL-D | 15.1/15.7/15.7 |
| Power Loss on TL-D | 8.5/8.0/10.3 |
| System Power on TL-D | 23.6/23.7/26.0 |
| F-marking | No |
| Bumps | IEC 60068-2-29:1993-Eb |
| EMI 9kHz .. 30 MHz | EN 55015 |
| Vibrations | IEC 60068-2-6:2007-Fc |
| C-Tick certificate | Yes |
| CCC certificate | No |
| PSB certification | No |
| TISI marking | No |
| CB Certificate | Yes |
| SIRIM approval | No |
Essentially smart and reliableHF-Essential is the most cost-effective, slim and affordable ballast to reliably operate a fluorescent lamp. It is also the ideal entry-level product for EM system users who want to enjoy the benefits offered by electronic ballasts. The cost-saving and reliable HF-Essential has an energy efficiency class A2, and its robust design meets all relevant international safety and performance standards. HF- Essential is intended for use with indoor lighting fixtures such as recessed luminaires, which are largely used in office, industrial, hotel, restaurant and other applications.
Features
| Complies with CE and Kema |
| Robust design for 45,000 hours lifetime at Ta=50 ˚C and over 6,000 on/off switching operations on one lamp |
| Energy efficiency class: A2 |
| Failure rate of 0.3% per 1,000 hours at Tc max = 75 °C |
| Igniter and capacitor not required; flicker-free and noiseless |
Applications
| Ideal for applications where there is a need to reduce the wattage per square meter or to reduce operating costs |
| Indoor applications such as office buildings, hospitals, supermarkets, department stores, homes and schools |
